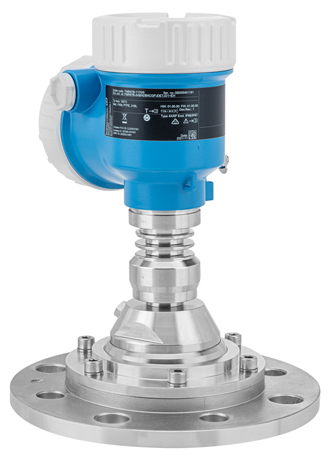

E+H Micropilot FMR67B Radar Sensor
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- ±3mm (0.12in) accuracy
- –40 to 842°F (–40 to 450°C) process temperature
- –1 to 160bar (–14.5 to 2,321psi) pressure range
- 125m (410ft) maximum measurement range
- PTFE lens antenna or ceramic sealed high-temperature horn antenna
- ~80GHz W-band
- SIL2 as per IEC 61508
- SIL3 for homogeneous redundancy
- Commission, operate, and troubleshoot with Bluetooth capability
The E+H Micropilot FMR67B radar sensor is designed for continuous, non-contact level measurement of powdered to granular bulk solids. The FMR67B is part of the new generation of 80 GHz radar sensors. It is suitable for free space applications up to 125m and offers high beam focusing for vessels with many internal fittings. The narrow beam angle is suitable for measurements in narrow silos.
Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology identifies anomalies for increased safety and productivity.
