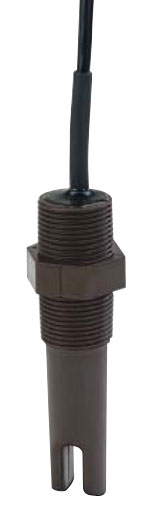

GF Signet 2284 Ultrasonic Gap Switch NPT thread 1in

CODE:

Write a review

$269¹⁰

In stock

Size:

Thread:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Size	Sort by Thread
Contact us for a price	In stock	159300272	Size: 1in	Thread: BSP thread
Contact us for a price	In stock	159300272	Size: 1in	Thread: NPT thread
$269¹⁰	In stock + −	159300274	Size: 1in	Thread: BSP thread
$269¹⁰	In stock + −	159300270	Size: 3/4in	Thread: BSP thread
$269¹⁰	In stock + −	159300274	Size: 1in	Thread: NPT thread
$269¹⁰	In stock + −	159300270	Size: 3/4in	Thread: NPT thread

Relay output
Corrosion resistant PPS body
1" and 3/4" threaded mounting
Process Temperature -4 to 158°F (-20 to 70°C)
Ambient Temperature -4 to 158°F (-20 to 70°C)
Process Pressure (absolute) 72.5 psi (5 bar)
Maximum Viscosity 5000 cSt at 68°F (20°C)
Repeatability: ±2 mm (0.08")
Small in-tank dimensions
Compact sensor contained full plastic body
No moving parts

The GF Signet 2284 Ultrasonic Gap Switch consists of Polyphenylene Sulphide (PPS) and is high corrosion resistant in most liquids. The gap switch is designed for high or low level alarm in different tank applications as well as pump control. However, if there is a liquid present, the signal will be transmitted across the gap and the integral electronics will switch the output circuitry to signal the presence of a liquid.

It can be mounted in any position in a tank using a 3/4" or 1" thread available in BSP and NPT thread forms.

Applications for the 2284 include:
