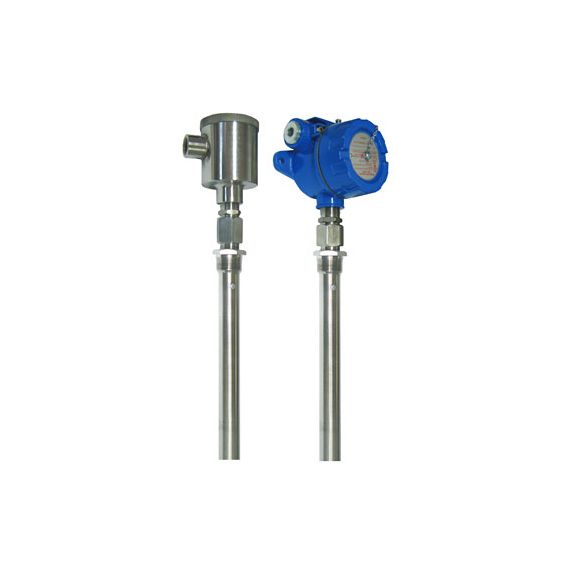

Intempco LTX02 Capacitance Level Transmitter

$1,24410
In stock
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

Features

  • Continuous loop powered 4-20 mA operation
  • Microprocessor Based
  • Accuracy 1% of span for constant dielectric of material
  • Non-interactive zero and span calibration
  • Calibration accomplished with 4 push buttons
  • Heavy duty industrial design
  • NEMA rated aluminum, stainless, PVC and explosion proof housings available
  • Standard fitting 1-1/2 NPT, flange and special fittings available
  • Standard or custom probe lengths are available from 6 inches to 20 feet
  • SS316 outside tube
  • Choice of bare SS316 or Teflon coated probe
  • 12 to 36 VDC supply voltage

LTX02 series 2-wire level transmitters are essentially LTX01 transmitters assembled with a concetric tube. LTX02 sensors can measure tank levels of liquids in metalic as well as non-metalic tanks. All other performance specifications are indentical to LTX01 sensors.

Ideal applications for the LTX02 include systems utilizing irregularly shaped tanks (ie. cone shaped); water based liquids in non-metallic tanks with the teflon coated probe and oil/mineral based liquids in metal/non-metallic tanks with the bare SS316 probe. Liquids being used must be compatible with chosen probe material; SS316 or PFA Teflon.

The LTX02 includes a standard 4 - 20mA loop powered LTX transmitter,a rugged customer selected enclosure, a rigid bare SS316 or Teflon coated probe, concentric tube for ranges of up to 20 feet and a fitting. The LTX02 is designed for tanks which have fitting connections of 3/4" NPT or larger. Call factory for smaller tank openings or special applications.

Application/Process notes

  • Water and water-based liquids in non-metalic tanks
  • Jacketed probes required for conductive media
  • Organic Acids compatible with SS316
  • Oils and fuels in metalic and non-metalic tanks
  • Use bare probes with non-conductive media
  • On-site calibration required
  • Not recommended where material dielectric changes
