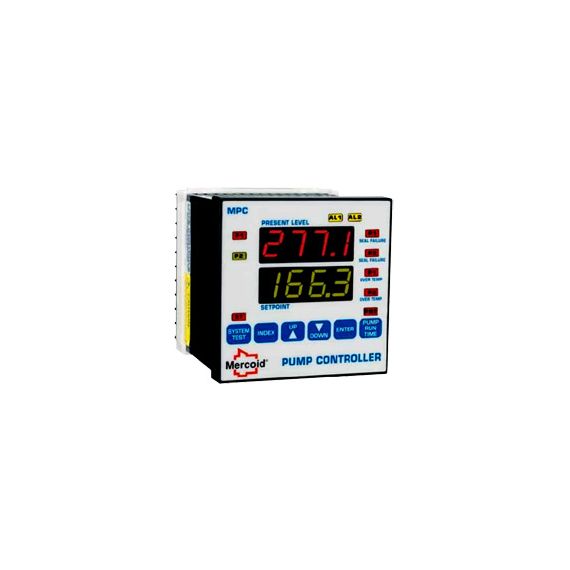

Mercoid MPC Level Controller Without Without

CODE:

Write a review

In stock

Serial Communications:

Voltage Retransmission:

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Serial Communications	Sort by Voltage Retransmission
Contact us for a price	In stock	MPC-RV	Serial Communications: Without	Voltage Retransmission: With voltage retransmission
Contact us for a price	In stock	MPC	Serial Communications: Without	Voltage Retransmission: Without
$401⁷⁰	In stock + −	MPC-RV-232	Serial Communications: With RS-232 Modbus-RTU serial communications	Voltage Retransmission: With voltage retransmission
$401⁷⁰	In stock + −	MPC-RV-485	Serial Communications: With RS-485 Modbus-RTU serial communications	Voltage Retransmission: With voltage retransmission
$401⁷⁰	In stock + −	MPC-232	Serial Communications: With RS-232 Modbus-RTU serial communications	Voltage Retransmission: Without
$401⁷⁰	In stock + −	MPC-485	Serial Communications: With RS-485 Modbus-RTU serial communications	Voltage Retransmission: Without

Selectable pump alternation when used with two pumps to minimize pump wear. With alternation “on” a seal failure or over temperature condition will force the non-failed pump to lead status and stop alternation
When used with a submersible pump including a moisture sensor the MPC has alarm light indication of seal failure
When used with a pump including a thermostat the MPC has alarm light indication of pump over temperature and removes the pump from service. The pump can be brought back into service automatically or by manual reset when the pump has cooled down.
Alarms can be programmed for output indication of pump seal failure or over temperature
Selectable time delay, for pump two, on power up to prevent both pumps from starting at the same time. If power is lost, upon regaining power a time delay of up to 60 seconds can be selected to prevent too large of a current draw
Integral 24 VDC power supply for level transmitter
Displays pump run time from a front panel button
Test System function that simulates the process input to ensure the pumps are operating or to test programming
User selectable security lock-out of programming and/or set points
Inputs: 4 (or 0) to 20 mA DC or 2 (or 0) to 10 VDC selectable
Control Relays: SPDT, rated 10A @ 240 VAC res., 1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm Relays: SPST, 3A @ 240 VAC res., 1/10 hp @ 120 VAC
Control Type: On/off, reverse (pump out) or direct (pump in) acting
Accuracy: ±0.25% of span, ±1 least significant digit
Two 4-digit, 7 segment display with 0.56" high LEDs
CE, cUL, UL approvals

The Mercoid MPC Level Controller provides versatile level control in a standard 1/4 DIN package. Designed for use with almost any style level transmitter the unit displays the present level and main set point value. Incorporated in the MPC is programmable level differential for on/off control of one or two pumps, valves, or other devices through two SPDT relays. Also featured are two additional programmable alarm contacts with front alarm light indication.

The MPC is flexible and incorporates a user-friendly programming menu. The front face meets NEMA 4X for outdoor panel mounting. So many features are combined into the MPC that it eliminates many components in a pump control system.

Mercoid MPC Level Controller Without Without

Features
