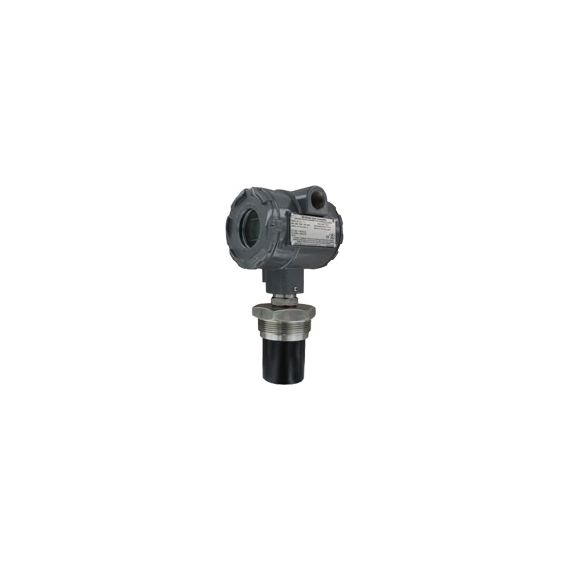

Mercoid ULT Ultrasonic Level Transmitter 10 m (32.8') 2" NPT male
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Range | Sort by Process Connection |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
ULT-22
|
Range:
|
Process Connection:
|
|
Contact us for a price
|
In stock
|
ULT-21
|
Range:
|
Process Connection:
|
|
Contact us for a price
|
In stock
|
ULT-12
|
Range:
|
Process Connection:
|
|
Contact us for a price
|
In stock
|
ULT-11
|
Range:
|
Process Connection:
|
Features
- For compatible fluids only. Not for use with powder and bulk solids.
- Ranges: 24.6' (7.5 m), 32.8' (10 m)
- Accuracy: ±0.2% of maximum range
- Resolution: 0.079" (2 mm)
- Blind Zone: Under 8" (20 cm)
- Beam Width: 3" (7.6 cm) diameter
- Temperature compensated from -40 to 140°F
- Pressure Limits: 30 psi (2 bar) up to 25°C (77°C)
- Wetted Materials:
- Sensor: PVDF
- Process Connection: 303 SS
- O-ring: fluoroelastomer
- Power Requirement: 18 to 28 VDC (2 wire)
- 4 to 20 mA or 20 to 4 mA (Two-wire) output
- Screw terminal connections
- 2" NPT male or BSPT process connection
- Enclosure Rating: Weather-proof meets NEMA 4X, explosion-proof rated Class I, Div. 1, Groups B, C, D; Class II/III, Div. 1, Groups E, F, G
- Non-volatile memory
- LCD display
- CE, FM approved
The Mercoid ULT Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. Mapping software makes effective measuring surface only a 3" diameter column. No concerns with ladders, pipes, or other tank intrusions in the remaining sound cone. Unit is FM approved explosion-proof making it ideal for use in hazardous locations. The ULT features easy programming with 6 digit LCD display and simple menu structure. Output range is adjustable with choices of inputting tank dimensions or just fill and empty the tank while calibrating and it automatically scales to levels it senses. Window cover allows early viewing of display. Fail-safe output options and diagnostic capabilities makes the ULT a good choice for critical applications.
