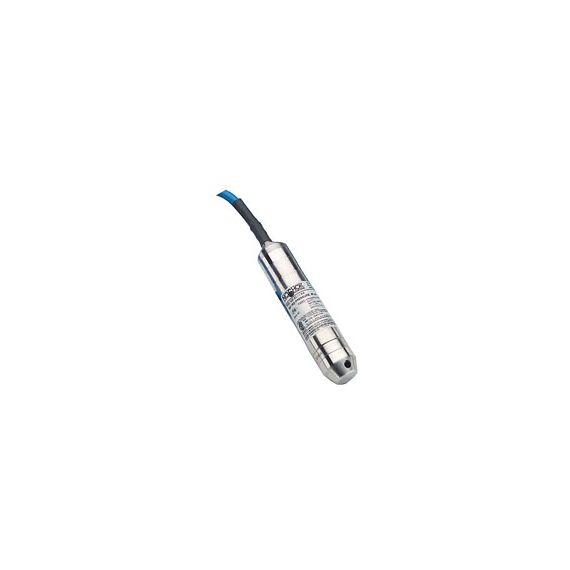

NOSHOK 627 Series Level Transmitters
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Output: 4 - 20mA, 2-wire
- Accuracy:
- ±0.25% Full Scale (Standard)
- ±0.125% Full Scale (Optional)
- Hysteresis: ≤ ±0.1% Full Scale
- Repeatability: ≤ ± 0.05% Full Scale
- Pressure ranges: Std. ranges from 0 to 50 inH2O through 0 to 350 psig
- Response time: ≤1 ms
- FM and CSA approved
- IP68, NEMA 6P continuously submersible
The NOSHOK Series 627 level transmitter combines the reliability and long life of diffused semiconductor and sputtered thin film strain gauge sensors with safe electronics for outstanding performance and value. These transmitters were designed for applications that require liquid level measurement in hazardous environments. All wetted parts are made of stainless steel welded with no internal O-rings, gaskets or seals.
NOSHOK Series 627 pressure transmitters are available with a stainless steel nosecone, a stainless steel weighted nosecone or NPT adapter and ranges to suit most applications. All units undergo extensive testing during the manufacturing process to ensure that the highest performance is achieved in the demanding environments found in today's applications. Series 627 transmitters are Factory Mutual approved.
NOSHOK model 627 transmitters are approved for use in hazardous location applications as follows:
- Intrinsically safe, entity approval for Class I, II, III, Division 1, Groups A, B, C, D, E, F and G; and Class I, Zone 0 Aex ia IIC
- Dust Ignition-proof for Class II and III, Division 1, Groups E, F and G
- Non incendive for Class I, Division 2, Groups A, B, C and D
- FMRC 3600, 3610, 3611, 3810 (including supplement #1), ISA-S12.0.01, IEC 60529 (including amendment #1)
Applications for the NOSHOK 627 Pressure Transmitter
- Water and wastewater
- Chemical tanks
- Methane wells
- Marine applications
