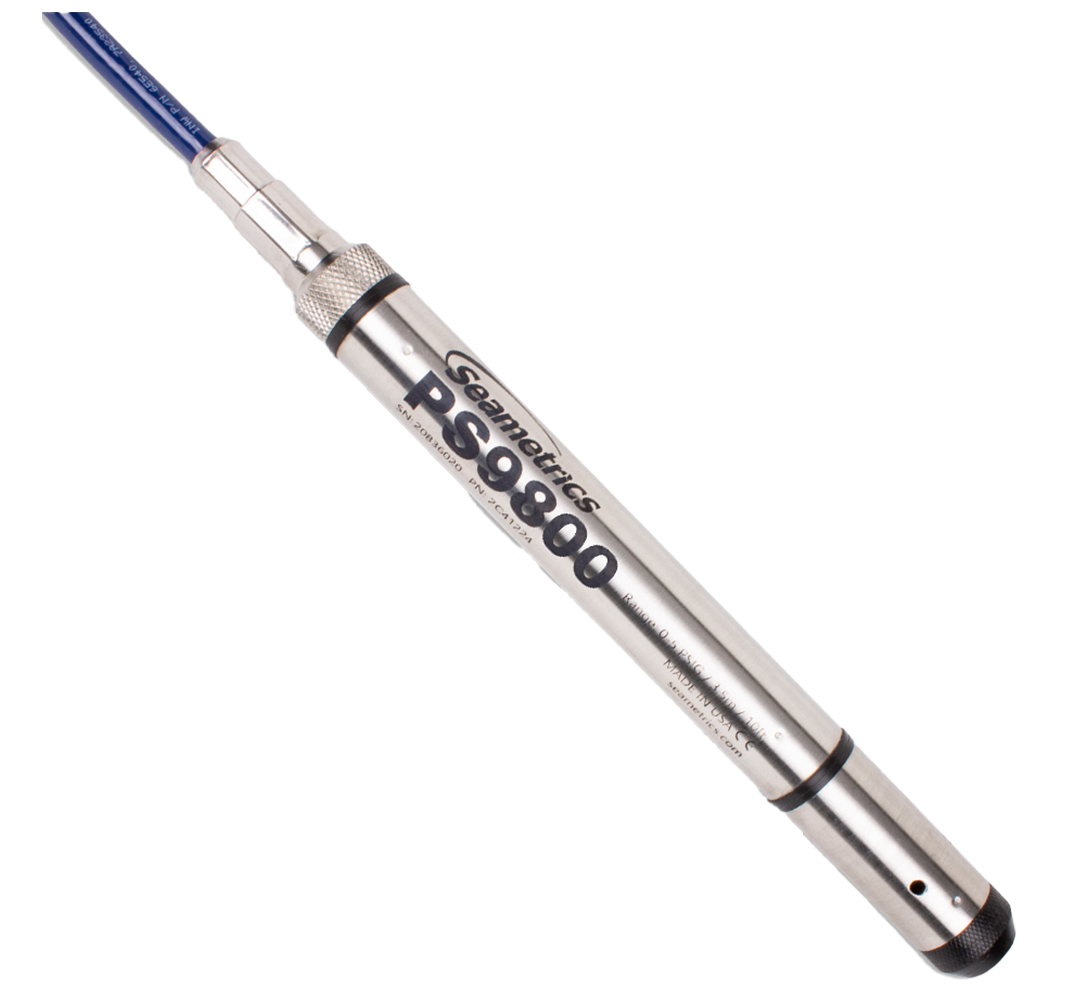

Seametrics PS9800 Analog Pressure Sensor
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Optional temperature channel
- Industry standard, 2-wire, 4-20 mA configuration
- Absolute or gauge
- ± 0.06% FSO typical accuracy
- Operates on low power
- 316 stainless steel, fluoropolymer, PTFE construction (titanium option available)
- Available with a variety of cable options—polyethylene, polyurethane, or FEP
- 1/4 NPT end cone adapter option
- Narrow 0.75″ diameter, 8″ length
The Seametrics PS9800 analog pressure sensor measures pressure and can be configured to measure temperature. It is thermally compensated for volatile conditions - ideal where water temperatures vary, such as in streams or in industrial tank applications. It includes a reverse polarity protection as well as designed with built-in transient protection. Optional lighting protection is available. This sensor is calibrated with patented calibration procedures and NIST traceable equipment.
Some suggestion applications with this sensor include:
- Pump and slug tests
- River, stream and reservoir gauging
- Storm-water runoff monitoring
- Wetland monitoring
- Well, tank and tidal levels
- Flow monitoring
- Water resource management
- Landfill leachate levels
- Control applications
