VEGA VEGAPULS Air 23 Autarkic Radar Sensor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measuring range up to 3m (9.8ft)
- Deviation ≤ 5mm
- Beam angle 8°
- Frequency 80GHz
- Threaded connection via adhesive, ceiling mounting, or tension belt mounting
- Process temperature -20 to 60°C (-4 to 140°F)
- Radio technology NB-IoT (LTE-Cat-NB1), LTE-M (LTE-CATM1), LoRa WAN
- Protection rating IP66/IP68 (0.2 bar)/IP69 acc. to IEC 60529, Type 6X acc. to NEMA
- ATEX / Europe, IEC / worldwide, UKEX approvals

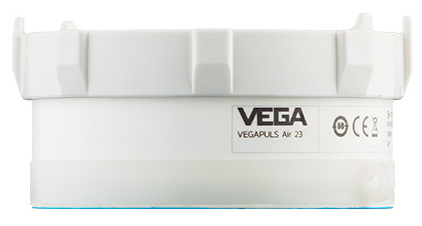

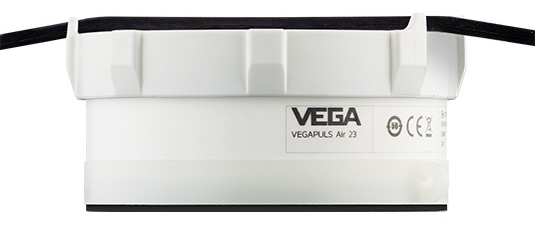

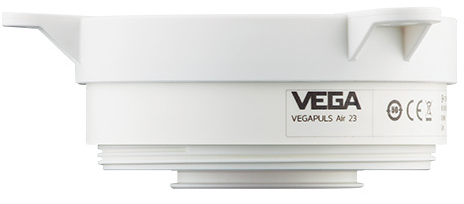

The VEGA VEGAPULS Air 23 autarkic radar sensor is ideal for level measurement in IBC and plastic vessels. The device measures through the closed vessel top and is suitable for almost all liquids and bulk solids. The VEGAPULS Air 23 is quickly installed by simple and secure adhesive, ceiling mounting, or tension belt mounting. As no additional power supply is required, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the container.
The sensor emits a radar signal through the antenna. The emitted signal is reflected by the medium and received as an echo by the antenna. The resulting level is converted into a respective output signal and wirelessly transmitted. Depending on the availability of the radio networks, the device transmits its measured values wirelessly to an LTE-M (LTE-CAT-M1) or NB-IoT (LTE-CAT-NB1) mobile radio or a plant-side LoRaWAN network.
VEGA VEGAPULS Air 23 Autarkic Radar Sensor Applications
- IBC containers for paper chemicals
- IBC containers with cleaning agents
- IBC-tank (plastic)
- Gullies
