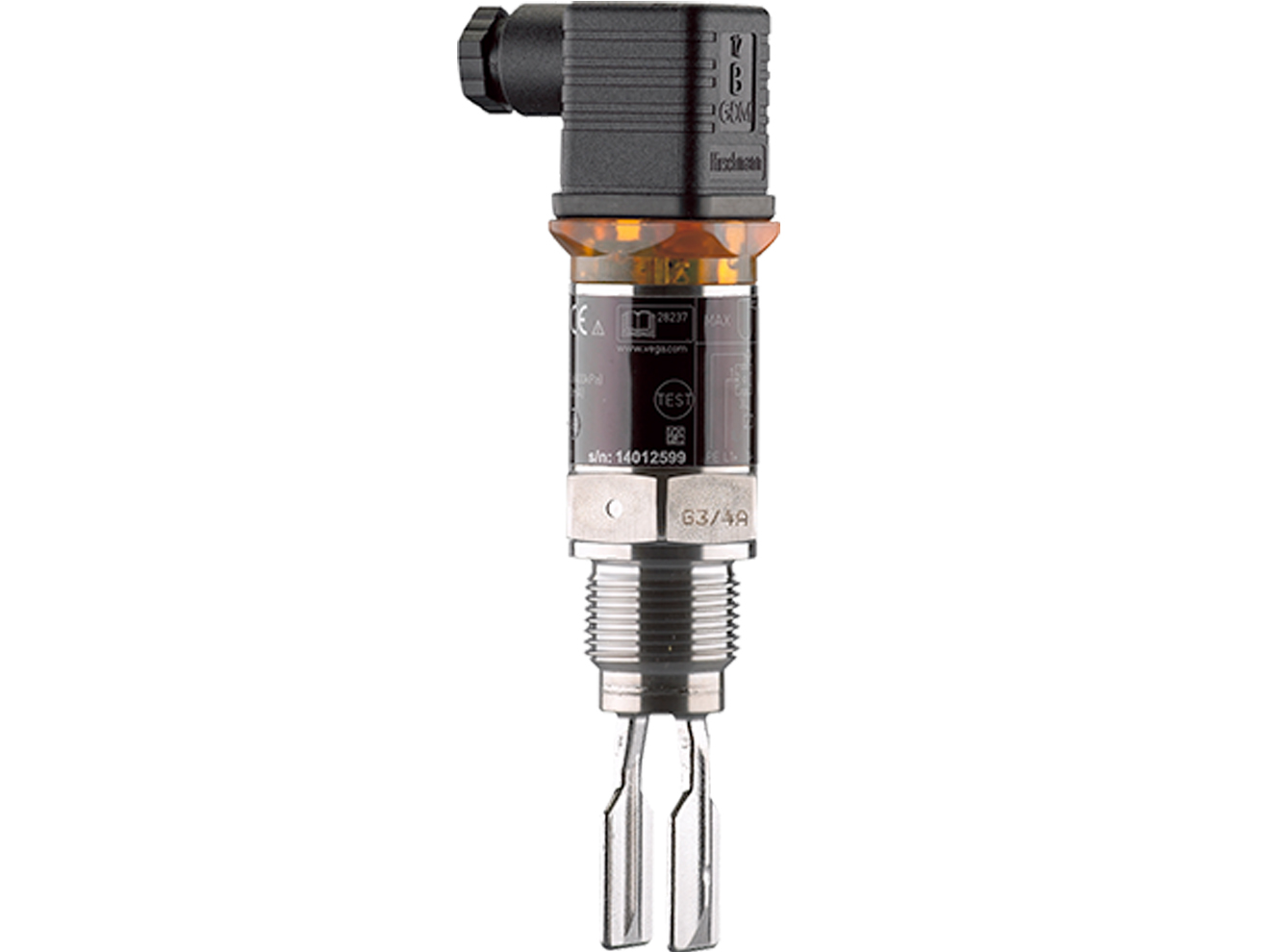

VEGA VEGASWING 51 Vibrating Level Switch
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Process pressure:
- -1 to 64bar
- -100 to 6,400kPa
- -14.5 to 928psig
- Process temperature:
- Standard: -40 to 212°F
- High temperature version: -40 to 302°F
- 0.1 to 10,000mPa s viscosity
- Density options:
- 0.7 to 2.5g/cm3 (0.025 to 0.09lbs/in3)
- 0.5 to 2.5g/cm3 (0.018 to 0.09lbs/in3)
- Approx. 2mm (0.08in) hysteresis with vertical mounting
- 9.6 to 35VDC operating voltage
- 316L materials (wetted parts)
- Threaded connection:
- ≥G1/2
- ≥1/2 NPT
- Hygienic fittings:
- Clamp ≥1in - DIN32676, ISO2852
- Slotted nut ≥DN25 - DIN 11851
- Hygienic fitting F40 with compression nut
- SMS DN38
- IP67, IP65, and IP65 (0.2bar) protection rating
The VEGA VEGASWING 51 Vibrating Level Switch reliably detects limit level with millimeter accuracy directly at the mounting position. The instrument can be used as an empty or full detector, as approved overfill protection, dry run protection, or pump protection in vessels and pipelines.
The sensor's vibration drive energizes the tuning form to vibrate at its resonance frequency. When covered with medium, the frequency of the fork decreases. This frequency change is processed by the integrated electronics and converted into a switching command. With the tuning fork's 38mm length, the VEGASWING works reliably independent of the installation position in any liquid. Pressure, temperature, foam, viscosity, and the composition of the liquid do not influence the switching accuracy.
The wetted parts of the instrument are made of stainless steel 316L. The supplied process seal is made of Klingersil C-4400.
Applications
- Point level detection for bilge and leakage monitoring
- Oil tank point level detection in the rotor gearbox
- Pressure monitoring and point level detection in the autoclave
