Flowline LP50 Switch Tek Level Switch PE
LP50-6005
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Bracket Material |
|---|---|---|---|
$39000
|
In stock
|
LP50-6005
|
Bracket Material:
|
|
$39000
|
In stock
|
LP50-1005
|
Bracket Material:
|
|
$42900
|
In stock
|
LP50-5005
|
Bracket Material:
|
Features
- LP50 Switch Tek LP50 Non Intrusive Capacitance Level Switch
- Accuracy: ±1mm in water
- Dielectric range: less than 10 constants
- Conductance range: less than 100µ
- Level detection through plastic or fiberglass walls
- Contact type: (1) SPST relay
- Process temp: -40 to 176°F (-40 to 80°C)
- Contact output: Selectable NO / NC
- Enclosure rating: NEMA4X (IP65)
- Enclosure material: PSO
- Contact rating: 60 VA, 1A maximum
- Repeatability: ± 0.5mm in water
- Cable jacket material: Polypropylene
- Cable type: 4-conductor, shielded #22AWG
- Cable length: 10’(3m)
- Conduit entrance: 1/2” NPT
- Tank mat. comp.: Non-metallic
- Tank mounting: bracket w/3M adhesive, plastic thermal weld
- Tank wall thickness: less than 1”(25mm)
- Bracket material:
- 6005; Polyethylene
- 1005; Polypropylene
- 5005; PVDF

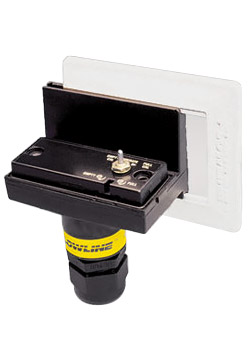

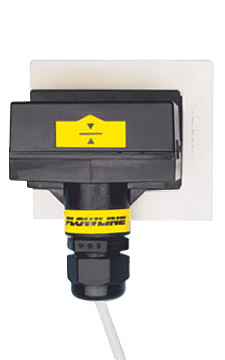

The Flowline LP50 Switch Tek Level Switch is a general purpose non-intrusive capacitance level switch that provides reliable liquid level detection of water based conductive liquids with non-coating and/or scaling characteristics with a 1A relay output. Media examples include hydrochloric, sulfuric acid and water. The liquid level sensor is bracket mounted on the exterior wall of non-metallic tanks and applied as a high level alarm or low level alarm.
Additional features and benefits of the Flowline LP50 Switch Tek Level Switch include:
- Non-intrusive level detection through plastic or fiberglass walls
- Installed with polyethylene, polypropylene or PVDF adhesive 3M mounting brackets
- Rugged PSO enclosure rated NEMA4X with conduit connector
- 60VArelay selectable NO or NC via power supply wiring polarity
- Ideal for high purity conductive liquids
- Three different bracket materials makes attachment to tank easy
- Great for non-metallic or FRP tanks up to 1" thick
- Use as a high or low level switch
