APG IRU-6420 Level Sensor 0-2.5V /0-5V Output (5 conductor cable) 6 feet of cable
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Output | Sort by Cable/Microconnector Options |
|---|---|---|---|---|
$86034
|
In stock
|
IRU-6429-C10
|
Output:
|
Cable/Microconnector Options:
|
|
$1,05924
|
In stock
|
IRU-6429-C100
|
Output:
|
Cable/Microconnector Options:
|
|
$87139
|
In stock
|
IRU-6429-C15
|
Output:
|
Cable/Microconnector Options:
|
|
$88244
|
In stock
|
IRU-6429-C20
|
Output:
|
Cable/Microconnector Options:
|
|
$89349
|
In stock
|
IRU-6429-C25
|
Output:
|
Cable/Microconnector Options:
|
|
$90454
|
In stock
|
IRU-6429-C30
|
Output:
|
Cable/Microconnector Options:
|
|
$91559
|
In stock
|
IRU-6429-C35
|
Output:
|
Cable/Microconnector Options:
|
|
$92664
|
In stock
|
IRU-6429-C40
|
Output:
|
Cable/Microconnector Options:
|
|
$94874
|
In stock
|
IRU-6429-C50
|
Output:
|
Cable/Microconnector Options:
|
|
$85150
|
In stock
|
IRU-6429-C6
|
Output:
|
Cable/Microconnector Options:
|
|
$97084
|
In stock
|
IRU-6429-C60
|
Output:
|
Cable/Microconnector Options:
|
|
$1,00399
|
In stock
|
IRU-6429-C75
|
Output:
|
Cable/Microconnector Options:
|
|
$88790
|
In stock
|
IRU-6429-M
|
Output:
|
Cable/Microconnector Options:
|
Features
- Measuring range: 1 to 30 feet for solids and liquids
- Accuracy: ±0.25% of detected range
- 0.1 inch resolution
- Output: 0 to 2.5 V / 0 to 5 V, selectable, with excitation for data logging
- Mounting: 2-inch NPT
- IP65 rated PVDF transducer housing
- Programming via RST-3001/3002 Programming Module
- Internet Connectivity with RST-5003
- Beam Pattern: 9˚off axis
- Internal Temperature Compensation
- Supply Voltage: 12-28 VDC
- AutoSense Software for hassle-free setup
- CSA general purpose certification

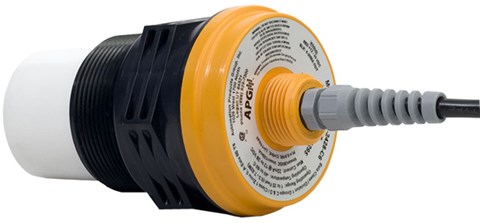

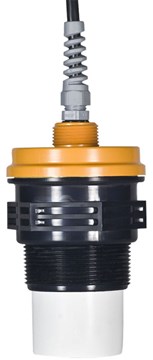

The APG IRU-6420 Level Sensor is an ultrasonic level sensor optimized for data logging with the inclusion of an excitation feature for those applications in which continuous level measurement, even in real-time, isn't enough and data logging is required.
The IRU-6420 series provides a non-contact method of detecting level, presence/absence detection, volume, proximity and distance. The sensor has a range of 1 to 30 feet with a basic accuracy of ±0.25% of detected range. With built in technology to compensate for unpredictable variables such as humidity, temperature and agitators the IRU-6420 is the right sensor for your application. The APG IRU-6420 features APG's AutoSense software for quick and easy programming in a variety of application settings making it hassle-free to set-up the system.
The IRU-6420 level sensors are designed for a variety of applications, and therefore have ample programming options to accommodate many needs. Output is selectable 0-2.5 V/0-5V and an RS-232 option is available.
