COSA Xentaur LPDT2 Dew Point Transmitter LPDT2-100 No display Safe area -148 to 68°F (-100 to 20°C) dewpoint
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Approvals | Sort by Transmitter | Sort by Display Type | Sort by Sensor Range |
|---|---|---|---|---|---|---|
Contact us for a price
|
In stock
|
LD1.00.B.0100100100
|
Approvals:
|
Transmitter:
|
Display Type:
|
Sensor Range:
|
|
Contact us for a price
|
In stock
|
LD1.00.B.0065065065
|
Approvals:
|
Transmitter:
|
Display Type:
|
Sensor Range:
|
Features
- -65°C to +20°C (-85°F to +68°F) dewpoint, XTR-65
- -100°C to +20°C (-148°F to +68°F) dewpoint, XTR-100
- ±3°C (± 5.5°F) for -100°C to +20°C dew point accuracy
- ±0.9°F repeatability
- Offset adjustment
- NEMA 4 IP66 Housing
- Digital output via MODBUS 485
- 10 to 33VDC power requirements
- Optional Cl 1 Div 2 / Zone 2 area ratings
- Available with or without digital LCD display
- Single Point calibration with a known gas value (display version)

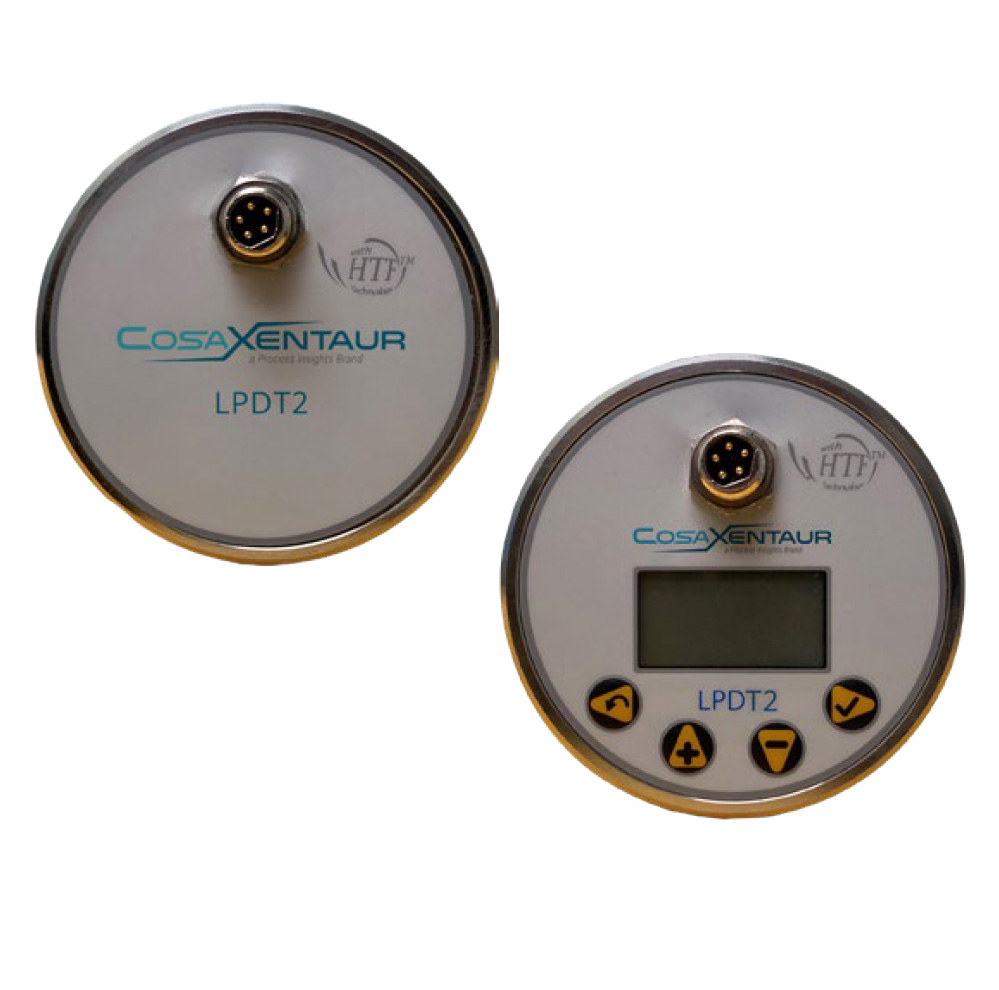

COSA Xentaur LPDT2 Dew Point Transmitter is an ultra-compact, loop-powered dew point transmitter available with or without a display. The LPDT2 is designed to offer users more control and higher accuracy when measuring dew point temperature in industrial applications. This versatile transmitter can be used to measure the moisture content of various gases and liquids, including natural gas, compressed air, hydrogen, nitrogen, and more.
LPDT2 with display is a fully functional instrument operated through a miniature custom LCD display and four push buttons, using the same user-friendly interface as COSA hygrometers. It enables users to view, select, and set options at the transmitter. LPDT2 with no display provides reliability to users without the additional expense of on-board transmitter control. Both LPDT2 transmitters feature Modbus 485 digital and 4-20mA analog outputs to provide a simple solution with highly accurate results.
With it’s thin-film capacitive polymer sensor, LPDT2 provides accurate and stable measurements of dew point temperature to indicate moisture content. The polymer sensor is highly resistant to contamination from oils, fuels, and other substances that can interfere with measurements. The sensor is highly stable and reliable, with a long lifespan and low maintenance requirements.
Applications include:
- Glove boxes
- Air generators
- Hydrogen Service
- Cryogenic applications
- Hydrocarbon processing
- Natural gas transmission
- Clean room environments
- Air dryers and compressors
- Welding and specialty air gases
