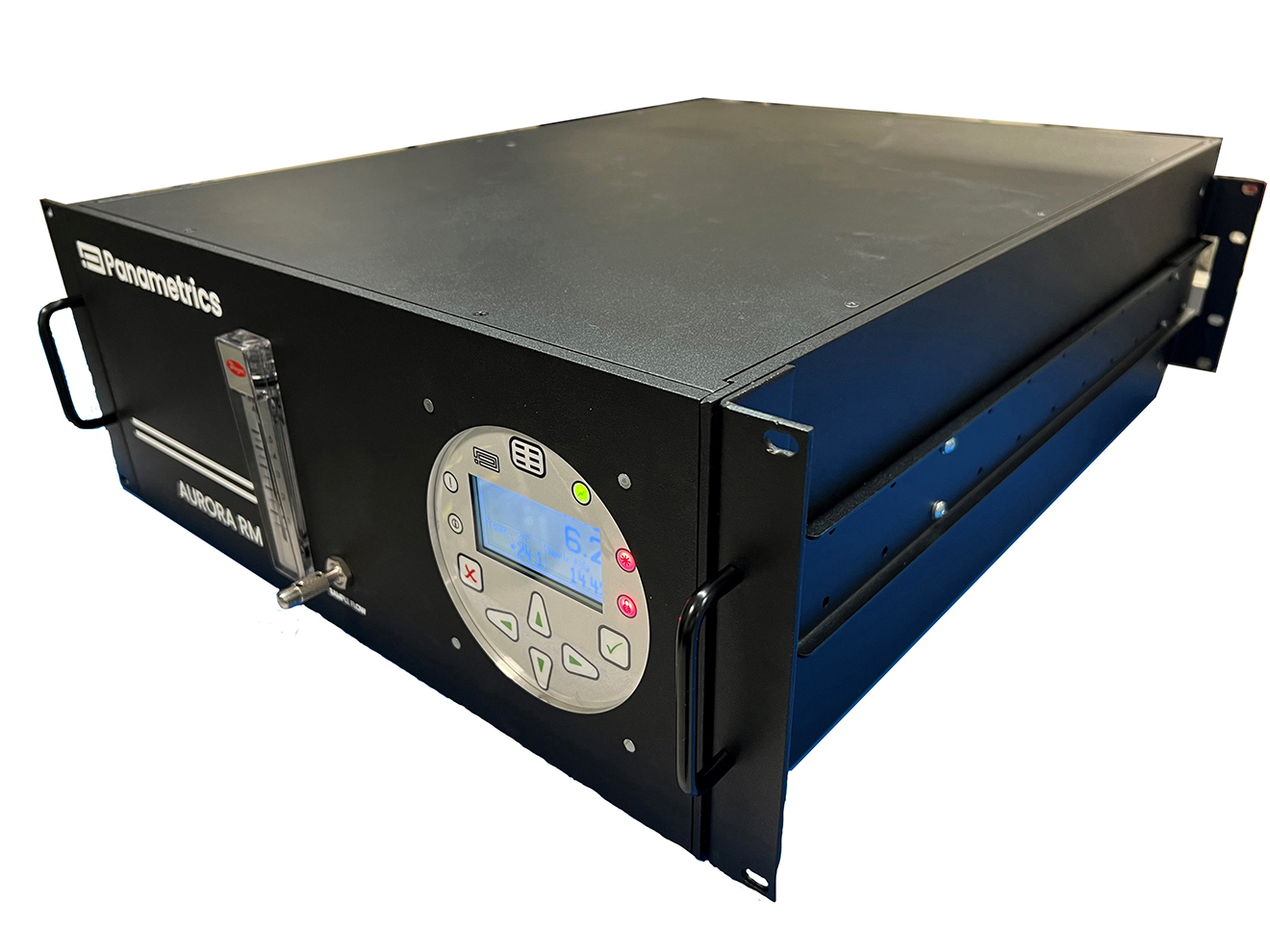

Panametrics Aurora RM Moisture Analyzer NEMA 5-15P, North America

Features

• 0 to 5000 ppm range (0 to 1000 ppm for CO2 applications)
• -97 to 27.3°F (-71 to -26°C) frost point at STP of 25°C
• 0.095 to 237lbs/MMSFC (1.52 to 3,803 mg/m3)
• ±1% of reading or ±2 ppmv, whichever is greater; for > 1000 ppmv, ±5% of reading
• ±3% of reading or ±5 ppm for CO2 applications
• ±0.2 ppmv or ±0.1% repeatability, whichever is greater (±1.0 ppmv or ±0.5% for CO2 applications)
• 102 psig (0.69MPa) process pressure
• 10 to 60 SLH (0.4 to 2 SCFH ); 30 SLH (1 SCFH) nominal sample cell flow rate
• Calibration options: nitrogen, standard natural gas and 3 customizable calibration curves
• NIST or equivalent NMI traceable certification
• Response time <2 seconds
• Three 0/4-20 mA DC (source) analog outputs with 500 ohm load
• Loop powered 4-20 mA input for remote pressure transmitter
• Two programmable digital communications ports with multidrop capability and assignable address, MODBUS RTU protocol
