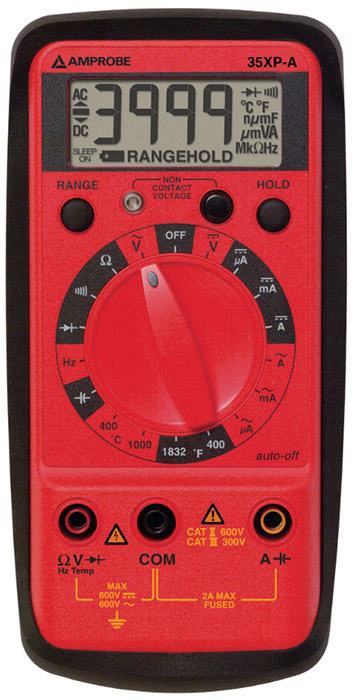

Amprobe 35XP-A Digital Multimeter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- DC Voltage
- Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
- Accuracy: ±(0.5 % rdg + 1 dgt)
- AC Voltage
- Ranges: 400 mV, 4 V, 40 V, 400 V, 750 V
- Accuracy: ±(1.5 % rdg + 5 dgts)
- AC/DC Current
- Ranges: 400 μA, 4000 μA, 40 mA, 400 mA, 2 A
- Accuracy: up to ±(1.0 % rdg + 2 dgt)DC; ±(2.0 % rdg + 3 dgts) AC
- Resistance
- Ranges: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ
- Accuracy: up to ±(1.0 % rdg + 4 dgts)
- Capacitance
- Ranges: 4 nF, 40 nF, 400 nF, 4 μF, 40 μF, 400 μF, 4 mF
- Accuracy: up to ±(5.0 % rdg + 5 dgts)
- Temperature
- Range: -4 °F to 1832 °F
- Accuracy: ± (1.0 % rdg + 6 °F )
- Frequency
- Ranges: 4 kHz, 40 kHz, 400 kHz, 1 MHz
- Accuracy: ±(0.1 % rdg + 3 dgts)
- Non-contact voltage detector: 70 to 600 VAC
- Continuity: Audible Indication < 25 Ω
- Diode Test, Overload Protection
- 3-3/4 digit LCD
- Cat 1 1000 V, Cat II 600 V, Cat III 300 V safety rating
- Low Battery and Overrange indicators
The Amprobe 35XP-A is a compact, full-featured digital multimeter ideal for plant maintenance, HVAC, electrical and electronic applications. The 35XP-A has the highest voltage rating in this class of meter as well as temperature measurement capability and VolTect non-contact voltage detection. A Magne-Grip holster with magnetic hanging strap is included to keep the meter always at hand. The 35XP-A has Cat 1 1000 V, Cat II 600 V, Cat III 300 V safety ratings.
The 35XP-A includes all the features and functions needed for a wide range of applications. The meter measures AC voltage to 750 V, DC voltage to 1000 V, AC and DC current to 2 A, resistance to 40 MΩ, capacitance to 4 mF, frequency to 1 MHz, and temperatures from -4 °F to 1832 °F via a type-K thermocouple. Additionally, the meter has a continuity beeper, diode test, and overload protection. A non-contact voltage indicator senses voltages from 70 to 600 VAC. All measurements have wide testing ranges and high accuracy. Testing results are displayed on the 3-3/4 digit LCD. Amprobe 35XP-A digital multimeters also include a Data Hold function as well as low battery and overrange indication.
The Amprobe 35XP-A digital multimeter ships complete with:
- Test leads (TL245A)
- Type K thermocouple probe (TP255A)
- Temperature adapter (XR-TA)
- Fuse 2 A/1000 V (FP200)
- 9 V battery
- Magne-Grip holster w/magnetic hanging strap (H2-XRA)
- Manual
