Extech EX530 Multimeter Yes
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by NIST Certification |
|---|---|---|---|
$60837
|
In stock
|
EX530
|
NIST Certification:
|
|
$71237
|
In stock
|
EX530-NIST
|
NIST Certification:
|
Features
- AC/DC voltage range: 0.01mV to 1000V
- AC/DC current range: 0.01µA to 20A
- Resistance range: 0.01W to 40MW
- Capacitance range: 0.001nF to 40mF
- Frequency (electrical) range: 40Hz to 400Hz
- Frequency (electronic) range: 0.001Hz to 100MHz
- Temperature range: -50 to 1382°F
- Basic accuracy: ±0.06%
- Diode open circuit voltage of 2.8V DC
- MIN/MAX/Relative/Data Hold
- Auto power off with disable feature
- CAT IV-600V safety rating for industrial applications
- Case and basic accessories included

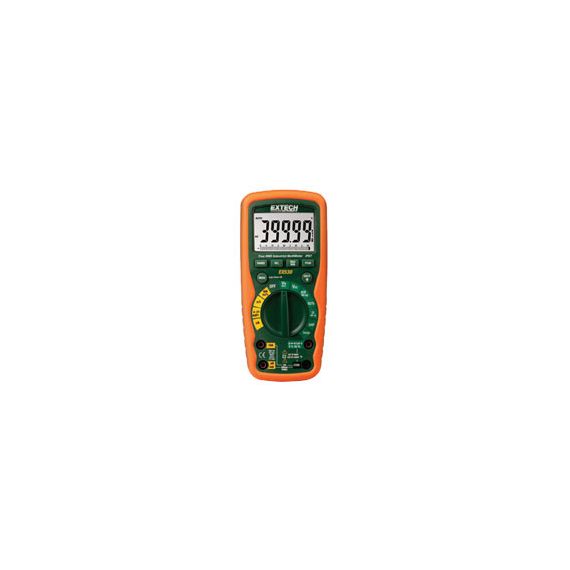

The Extech EX530 is an industrial quality True RMS multimeter featuring 1000V input protection over all ranges. The EX530 was designed to handle the rigors of field testing in adverse conditions including drop-tests from 6 feet as well as double molded housing for waterproof protection to IP67 standards. The EX520 also includes a CAT-IV-600V safety rating for industrial applications. The EX530 multimeter is also available as a kit to increase the versatility of the instrument.
The Extech EX530 is a versatile instrument capable of accurately measuring AC/DC voltage, AC/DC current, resistance, frequency, capacitance, and temperature. The basic accuracy of the meter is and outstanding ±0.06%. Results are displayed on a large, 40,000-count LCD for the highest resolution.
Additional features of the Extech EX530 include: diode and continuity tests, MIN/MAX, Data Hold and Relative, Peak Hold (AC only), an auto power off with disable feature, and dual sensitivity frequency functions (electrical/electronic).
