Extech MN35/36 Mini Digital Multimeters Autoranging mini multimeter

CODE:

Write a review

$92²⁷

In stock

Model:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Model
$92²⁷	In stock + −	MN36	Model: Autoranging mini multimeter
$62³⁷	In stock + −	MN35	Model: Manual ranging mini multimeter

Features

DC voltage for MN35: 200MV, 2V, 20V, 200V, 600V; 0.1mV resolution; up to ±0.5% basic accuracy
DC voltage for MN36: 400MV, 4V, 40V, 400V, 600V; 0.1mV resolution; up to ±0.5% basic accuracy
AC voltage for MN35: 200V, 600V; 0.1V resolution; up to ±1.2% basic accuracy
AC voltage for MN36: 4V, 40V, 400V, 600V; 0.1V resolution; up to ±1.2% basic accuracy
DC current for MN35: 200mA, 10A DC current; 0.1mA resolution; up to ±1.5% basic accuracy
DC current for MN36: 400µA, 4000µA, 40mA, 200mA, 10A; 0.1µA resolution; up to ±1.2% basic accuracy
AC current for MN36: 400µA, 4000µA, 40mA, 200mA, 10A; 0.1µA resolution; up to ±1.5% basic accuracy
Resistance for MN35: 200Ω, 2kΩ, 20kΩ, 200kΩ, 20MΩ; 0.1µΩ resolution, up to ±0.8% basic accuracy
Resistance for MN36: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ; 0.1µΩ resolution, up to ±1.2% basic accuracy
Capacitance for MN36: 4nF, 40nF, 400nF, 40µF, 100µF; 0.001nF resolution; up to ±3.0% basic accuracy
Frequency for MN36: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 5MHz; 0.01Hz resolution; up to ±1.0% basic accuracy

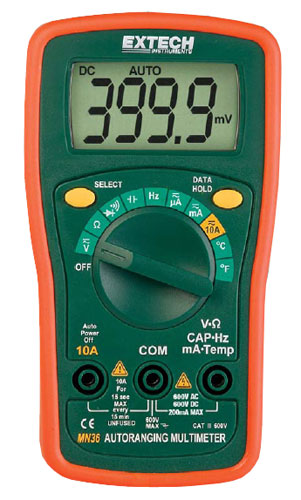

The Extech MN35/36 digital mini multimeters feature large easy to read digital displays. Extech MN35/36 digital mini multimeters measure AC and DC voltage to 600V, have a DC current function to 10A, and take thermocouple temperature measurements to 1400°F (750°C).

Extech MN35/36 digital mini multimeters also feature resistance tests with continuity and diode functions. The manual ranging model (Extech MN35) has a 9V and 1.5V battery test. The autoranging model (Extech MN36) can take AC current, capacitance, and frequency measurements. The data hold feature locks the reading in the display.

MN35_MN36-datasheet (MN35_MN36-datasheet.pdf, 287 Kb) [Download]

MN35-manual (MN35-manual.pdf, 117 Kb) [Download]

MN36-manual (MN36-manual.pdf, 90 Kb) [Download]
