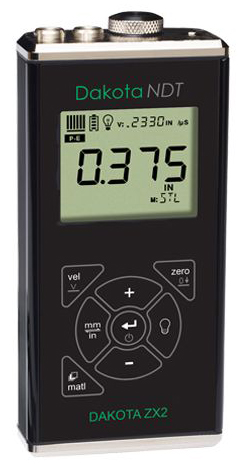

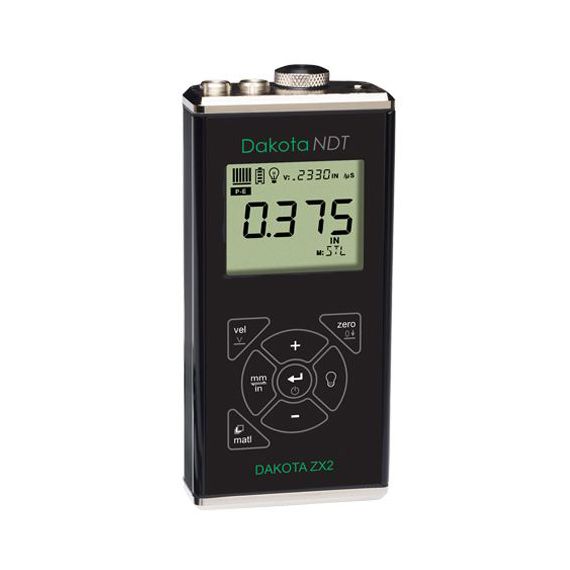

Dakota NDT ZX2 Fixed Velocity Thickness Gauge

Write a review

$1,852⁵⁰

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents

Features

Pulse-Echo (P-E) measurement range: 0.025 to 36in (0.63 to 914.4mm)
Measurement resolution: 0.001in (0.01mm)
120MHz FPGA timing
150 volt square wave pulser
Velocity range: 0.0120 to 0.7300in/μs (305 to 18,542m/s)
Pulse repetition frequency: 200Hz
Display update rate: 10Hz
8 preset and 2 user-programmable velocity options
Dual-element transducer (1-10MHz)
Automatic V-path / dual path error correction
Adjustable material velocity
Multi-function, 7-segment, 4.5-digit liquid crystal display
Factory calibration traceable to NIST & MIL-STD-45662A
5-year limited warranty

The Dakota NDT ZX2 fixed velocity thickness gauge is a basic dual element thickness gauge with the ability to locate blind surface pitting and internal defects/flaws in materials. The ZX2 is capable of measuring the thickness of various materials with accuracy as high as ±0.001 inches (±0.01 millimeters).

The ZX2 gives inspectors more pre-set calibration options by allowing them to scroll to a known material velocity, or select a common material from a list of material types stored within the gauge.

Dakota NDT ZX2 Fixed Velocity Thickness Gauge's selectable velocity options

Steel 4340 0.233in/μs (5918m/s)
Stainless 303 0.223in/μs (5664m/s)
Aluminum 2024 0.25in/μs (6350m/s)
Cast Iron 0.18in/μs (4572m/s)
Plexiglass 0.106in/μs (2692m/s)
PVC 0.094in/μs (2388m/s)
Polystyrene 0.092in/μs (2337m/s)
Polyurethane 0.07in/μs (1778m/s)
User programmable
User programmable

The ZX2 gauge was designed and built to withstand the roughest industry conditions, and is backed by a 5-year limited warranty. Custom transducers are available for special applications.

Dakota NDT ZX2 Fixed Velocity Thickness Gauge Applications

Corrosion and pitting
Tube and pipe
Tanks
Boilers
Glass
