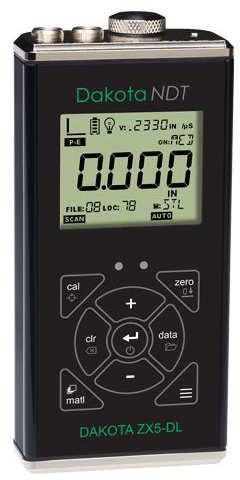

Dakota NDT ZX5-DL Thickness Gauge and Data Logger
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Pulse-Echo (P-E) measurement range: 0.025 to 36in (0.63 to 914.4mm)
- Measurement resolution: 0.001in (0.01mm)
- 120MHz FPGA timing
- 150 volt square wave pulser
- Adjustable gain (40-52dB) in 3dB steps
- Velocity range: 0.0120 - 0.7300in/μs (305 - 18,542m/s)
- Pulse repetition frequency: 200Hz
- Display update rate: 10Hz
- High speed scan speed at 100Hz
- Dual element transducer (1 to 10MHz)
- Automatic V-path / dual path error correction
- Multi-function, 7-segment, 4.5-digit liquid crystal display
- 32 megabit flash memory
- USB download cable
- Factory calibration traceable to NIST & MIL-STD-45662A
- 5-year limited warranty
The Dakota NDT ZX5-DL thickness gauge and data logger is a basic dual element thickness gauge with the ability to locate blind surface pitting and internal defects and flaws in materials. The ZX5-DL is capable of measuring the thickness of various materials with accuracy as high as ±0.001 inches (±0.01 millimeters).
The High Speed Scan feature of the ZX5-DL increases the overall repetition rate to a maximum of 140Hz with a high speed screen refresh rate of 25 times a second. This allows for making scanned passes over an arbitrary length of the test material, while still maintaining a reasonable representation of thickness over the area or region scanned.
The ZX5-DL has an on-board data logger that stores 10,000 readings in 40 files of 250 readings per file.
Dakota NDT ZX5-DL Thickness Gauge and Data Logger Applications
- Corrosion and pitting
- Tube and pipe
- Tanks
- Boilers
- Glass
