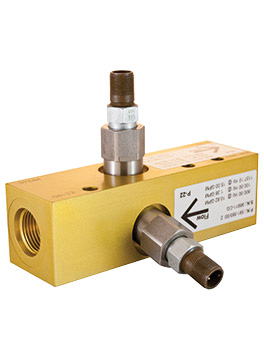

Flo-tech Quad Series Turbine Flow Sensor 3 to 60 GPM (11.5 to 227 LPM) SAE 16 EPR
F2084-ASCQ4-E
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Seal Material | Sort by Flow Range & Port Size |
|---|---|---|---|---|
$1,38060
|
In stock
|
F2082-ASCQ4
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,40530
|
In stock
|
F2082-ASCQ4-E
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,40530
|
In stock
|
F2082-ASCQ4-V
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,38060
|
In stock
|
F2083-ASCQ4
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,40530
|
In stock
|
F2083-ASCQ4-E
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,40530
|
In stock
|
F2083-ASCQ4-V
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,41960
|
In stock
|
F2084-ASCQ4
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,44430
|
In stock
|
F2084-ASCQ4-E
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,44430
|
In stock
|
F2084-ASCQ4-V
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,46640
|
In stock
|
F2085-ASCQ4
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,49110
|
In stock
|
F2085-ASCQ4-E
|
Seal Material:
|
Flow Range & Port Size:
|
|
$1,49110
|
In stock
|
F2085-ASCQ4-V
|
Seal Material:
|
Flow Range & Port Size:
|
Features
- Repeatability ±0.2%
- Pressures up to 5000 psi (345 bar)
- Temperatures up to 300°F (150°C)
- ±1% of FS flow accuracy for forward & reverse flow
The Flo-tech quad series turbine flow sensors are derived from the FSC series, utilizing two flow transducers which are 90° electrically out of phase from each other. With the addition of a second flow transducer, it is possible to monitor flow in both directions. The F2000 quad is suitable for up-down counters that can discern the leading and trailing edges of the quadrature signals.
The F2000 can be used as a speed-sensing device on mobile equipment in current applications. This bi-directional flow sensor can be used as a governor, sending frequency signals back to a PLC, which enables it to make the necessary adjustments. Other functions of the flow sensor are in linear applications where accurate positioning is required.
