Dwyer SPPM2 Graphical User Interface Panel Meter With development board
SPPM2--43-D
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Development Board |
|---|---|---|---|
Contact us for a price
|
In stock
|
SPPM2--43-D
|
Development Board:
|
|
Contact us for a price
|
In stock
|
SPPM2--43
|
Development Board:
|
Features
- Up to 4 analog inputs, 8 digital I/O
- 4 x PWM, 2 x alarm (open collector) outputs
- Multi-pin DIL’s, 1 mini-USB, & 1 RS232 electrical connections
- 10 samples/sec sampling rate
- USB port or 5 to 30 VDC power supply
- Compatible with Windows 7, Windows 8 & Windows 10
- Optional Development Board
- 4 x ±5 VDC inputs
- 8 x digital I/O, 4 x PWM outputs
- RS232 serial communication

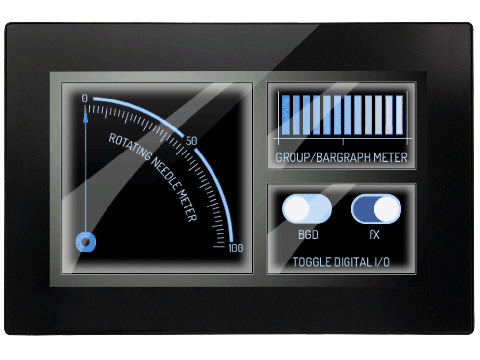

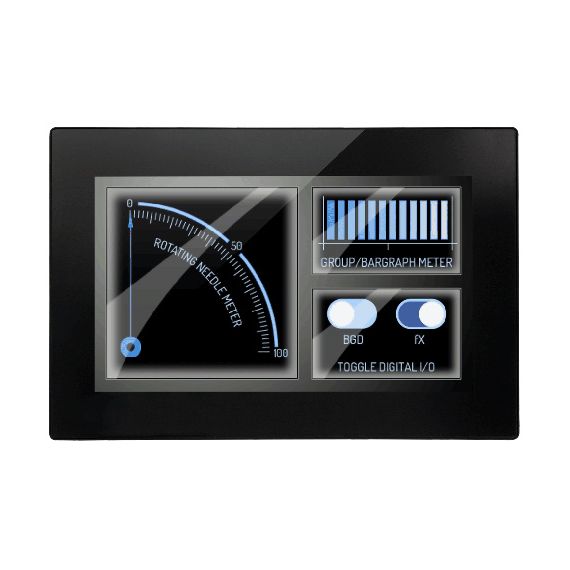

The Dwyer SPPM2 panel meter is a configurable, full-color 4.3˝ (109 mm) touch screen display that can be used in a variety of applications including lift station pump control, room condition monitoring and walk-in refrigeration/freezer control. This Dwyer panel meter features an accuracy of ±0.05% ±0.1 mV and a 0.04 mV (max) or 4 decimal place resolution.

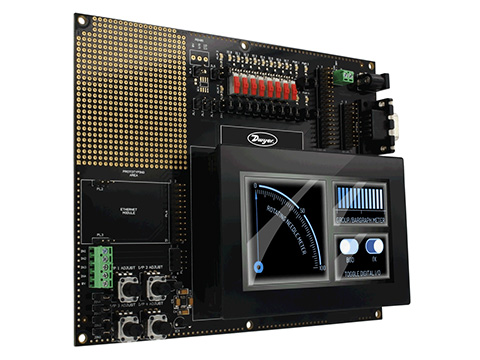

By using the free Windows® based Interface Panel Design Studio software, users can personalize the display with buttons, switches, and analog and digital scales to suit their needs. An optional development board is also available, which includes a development board with buttons, dials, LEDs, and screw terminals to test the functionality of all inputs and outputs.
