Jewell Instruments DSI-1000 Panel Meter 9 to 18VDC (400mA max) Ethernet 10BaseT/100Base-TX
DSI-1003-3
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Input Voltage | Sort by Interface Compatibility |
|---|---|---|---|---|
$2,17750
|
In stock
|
DSI-1000-3
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,17750
|
In stock
|
DSI-1000-1
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,17750
|
In stock
|
DSI-1000-2
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,69750
|
In stock
|
DSI-1004-3
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,69750
|
In stock
|
DSI-1004-1
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,69750
|
In stock
|
DSI-1004-2
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,24250
|
In stock
|
DSI-1001-3
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,24250
|
In stock
|
DSI-1001-1
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,24250
|
In stock
|
DSI-1001-2
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,67150
|
In stock
|
DSI-1002-3
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,67150
|
In stock
|
DSI-1002-1
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,67150
|
In stock
|
DSI-1002-2
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,68450
|
In stock
|
DSI-1003-3
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,68450
|
In stock
|
DSI-1003-1
|
Input Voltage:
|
Interface Compatibility:
|
|
$2,68450
|
In stock
|
DSI-1003-2
|
Input Voltage:
|
Interface Compatibility:
|
Features
- Input voltage:
- 115 or 230 VAC
- 5 to 36 VDC
- Interface compatibility
- Serial RS232
- Ethernet 10BaseT/100Base-TX
- Serial RS485
- Dual channel inputs
- Front panel digital zero (Tare)
- Splash proof bezel
- 0 to 10VDC analog output
- ±15 VDC sensor excitation

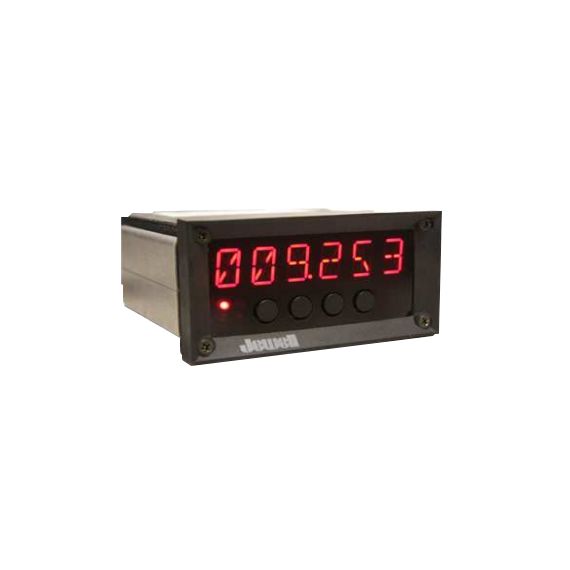

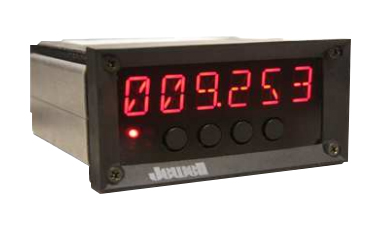

The Jewell Instruments DSI-1000 Panel Meter is designed to take the output from Jewell's gravity referenced inclinometers and display it as an angle. The compact unit provides the ±15VDC sensor excitation with dual channel inputs. It conditions the inclinometer output and displays the angle down to 0.001 degrees.
The unit includes front panel switches for programming and calibration, and displays six digits in 0.56in LED readouts with negative indication. The panel meter supports two set-points with relay closures. The case is 4in behind panel depth. The meter is programmable for different range inclinometers. The unit is housed in a heavy duty aluminum case, and an RS232 interface comes standard.
Applications
- Marine: alarm monitoring systems
- Industrial: monitoring remote sensors
- Fire trucks: monitoring tilt angle of ladders
