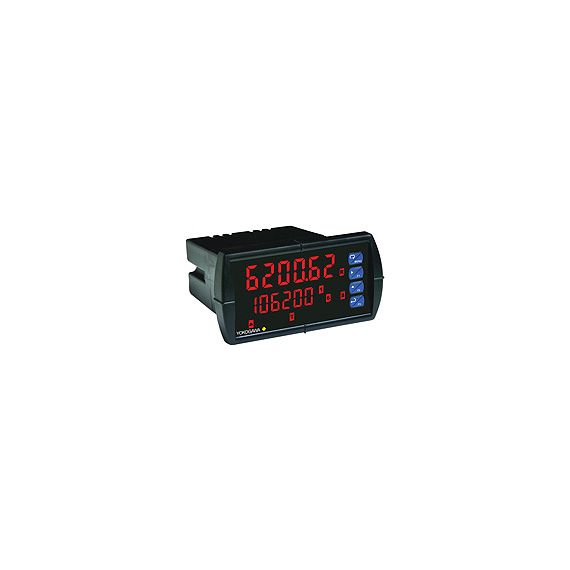

Yokogawa PROPLUS YPP6200 / YPP6300 Flow Rate/Totalizer
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Analog inputs:
- 0-20mA, 4-20mA, 0-5V, 1-5V, and ±10V inputs
- Isolated 24 VDC @ 200 mA Transmitter Power Supply
- 32-Point, Square Root, or Exponential Linearization
- Tare Function
- Pulse inputs
- Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, sine Wave (Coil), Square Wave Inputs
- 5, 10 or 24VDC flowmeter power supply
- Gate function for rate display of slow pulse rates
- K-Factor, internal scaling, or external calibration
- 4-20mA output option converts the pulse input to an isolated 4-20mA output
The Yokogawa PROPLUS YPP6200 and YPP6300 PROPLUS meters are 1/8 DIN flow rate/totalizers specifically designed for displaying flow rate and total from flowmeters with analog or pulse outputs. These flow rate/totalizers are particularly well-suited for flow applications because they can display flow rate and flow total at the same time, provide power to drive the flowmeter, and display flow total, flow grand total, or non-resettable flow total on up to nine digits.
The YPP6200 can display flow rate and total by extracting the square root from the 4-20 mA signal from a differential pressure transmitter. The user selectable low-flow cutoff feature gives a reading of zero when the flow rate drops below a user selectable value.
YPP6200 features:
- Display Flow Rate
- User Selectable Low-Flow Cutoff
- Only 2 Calibration Points Required
The YPP6300 accepts the pulse output from a flowmeter and with the appropriate option installed can convert the pulse to a 4-20 mA signal. The 4-20 mA signal can be programmed to correspond to either the flow rate or the total flow.
YPP6300 features:
- Use K-Factor or Multi-Point Scaling
- PROPLUS Powers the Flowmeter
- Display Flow Rate & Total
Rate/totalizer features:
- Display rate/total at the same time
- Total, grand total or non-resettable grand total
- Password protection for total reset
- 9-Digit totalizer with total overflow feature
- Total stored in non-volatile memory
- Any relay for rate or total
- 4-20 mA output for rate or total
- Sampling relay
Meter features:
- NEMA 4X, IP65 front
- Large dual-line 6-digit display
- Dual-scale for level applications
- Multi-Pump Alternation Control
- Signal Input Conditioning
