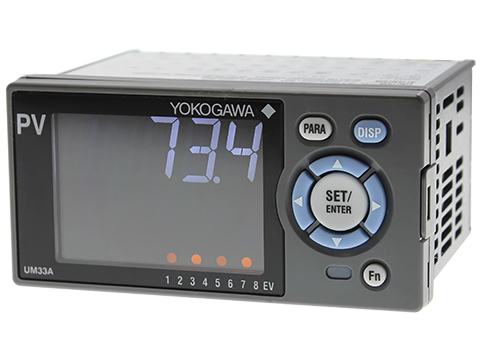

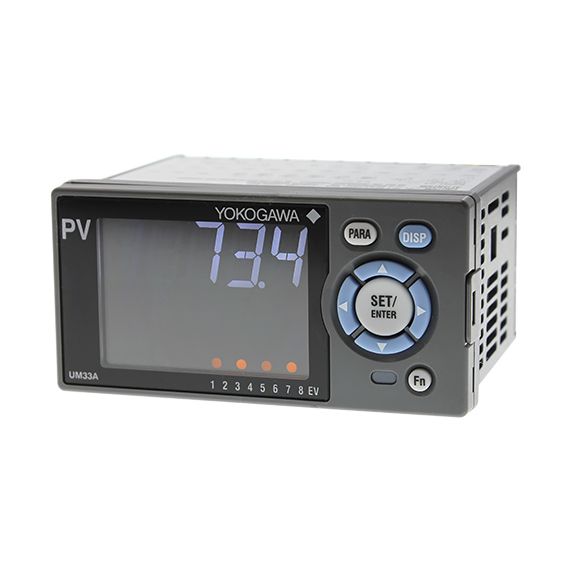

Yokogawa UM33A Digital Indicator

$68900
In stock
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

Features

  • Universal input
  • Includes 3 SPST mechanical alarm relays
  • Advanced functionality
  • 24 VDC sensor power supply available
  • Easy-to-read, 5 digit, 14-segment large color LCD display
  • Scrolling text feature for parameters
  • Navigation guide & navigation keys
  • Programmable function keys
  • User settable default values
  • Compact design of 65-mm depth
  • RS-485 (Modbus/RTU, peer to peer, coordinated, PC-Link)
  • RoHS/WEEE compatible
  • NEMA4/IP56 front panel

The Yokogawa UM33A digital indicator with alarms is a 1/8 DIN indicator designed to monitor and display processes such as temperature, pressure, flow rate, and other types of data while providing an alarm when an input signal reaches a preset value.

The Yokogawa UM33A digital indicator has up to eight alarm outputs and eight screen display points, twice the number of comparable models. A dedicated program eases the task of entering alarm values and other information, eliminating the need to input them using the keys on the front panel of each device. Measurements are shown on the large, easy to ready, 14 segment color LCD. The UM33A includes a scrolling text feature for parameters, user-friendly navigation, programmable function keys, user settable default values, and RS-485 (Modbus/RTU, peer to peer, coordinated, PC-Link) communications.

Input SpecificationsContact I/O FunctionSafety and EMC Standards

Input Type Range Accuracy
Type K T/C -270.0 to 1370.0°C
-270.0 to 1000.0°C
-270.0 to 500.0°C
±0.1% ±1 digit ≥ 0°C
±0.2% ±1 digit < 0°C
±2% ±1 digit < -200.0°C
Type J T/C -200.0 to 1200.0°C ±0.1% ±1 digit ≥ 0°C
±0.2% ±1 digit < 0°C
Type T T/C -270.0 to 400.0°C
0.0 to 400.0°C
±0.1% ±1 digit ≥ 0°C
±0.2% ±1 digit < 0°C
±1% ±1 digit < 200°C
Type B T/C 0.0 to 1800.0°C ±0.15% ±1 digit ≥ 400°C
±5% ±1 digit < 400.0°C
Type S T/C 0.0 to 1700.0°C ±0.15% ±1 digit
Type R T/C 0.0 to 1700.0°C ±0.15% ±1 digit
Type N T/C -200.0 to 1300.0°C ±0.1% ±1 digit
±0.25% ±1 digit < 0°C
Type E T/C -270.0 to 1000.0°C ±0.1% ±1 digit ≥ 0°C
±0.2% ±1 digit < 0°C
±1.5% ±1 digit < -200.0°C
Type L T/C -200.0 to 900.0°C ±0.1% ±1 digit ≥ 0°C
±0.2% ±1 digit < 0°C
Type U T/C -200.0 to 400.0°C
0.0 to 400.0°C
±0.1% ±1 digit ≥ 0°C
±0.2% ±1 digit < 0°C
Type W T/C 0.0 to 2300.0°C ±0.2% ±1 digit
Platinel 2 T/C 0.0 to 1390.0°C ±0.1% ±1 digit
PR20-40 T/C 0.0 to 1900.0°C ±0.5% ±1 digit ≥ 800°C
W97Re3-W75Re25 T/C 0.0 to 2000.0°C ±0.2% ±1 digit
JPt100 RTD -200.0 to 500.0°C
-150.00 to 150.00°C
±0.1% ±1 digit
Pt100 RTD -200.0 to 850.0°C
-200.0 to 500.0°C
-150.0 to 150.00°C
±0.1% ±1 digit
Standard Signal 0.400 to 2.000 V
1.000 to 5.000 V
4.00 to 20.00 mA
±0.1% ±1 digit
DC Voltage/Current 0.000 to 2.000 V
0.00 to 10.00 V
0.00 to 20.00 mA
-10.00 to 20.00 mV
0.0 to 100.0 mV
±0.1% ±1 digit
Alarm Functions
Parameter Details
Types PV (measured value) high/low limit alarm
PV rate of change alarm
Self-diagnosis alarm
Alarm Output Action Alarm stand-by action
Alarm latch (forced reset) function
Alarm hysteresis
Alarm ON/OFF delay timer
Number of Alarm Settings 8
Alarm Output Points 9 (differs by model)
Parameter Details
Contact Input PV peak and bottom values reset
Latch release (ACK)
LCD backlight on/off switch
PV red/white switch
Message interrupt displays 1 through 4
Contact Output Alarms 1 through 8
Status output
Parameter Details
Safety Compliant with IEC/EN61010-1 (CE)
approved by CAN/CSA C22.2 No.61010-1
UL61010-1: Pending approval
Installation Category CAT. II Pollution degree: 2
Measurement Category I (CAT. I)
EMC Conformity Standards CE marking
EN61326-1 Class A, Table 2 (For use in industrial locations)
EN61326-2-3
EN 55011 Class A, Group 1
EN 61000-3-2 Class A
EN 61000-3-3
C-tick mark
EN 55011 Class A, Group 1
Front Panel Rating Dust-proof and drip-proof: IP56
