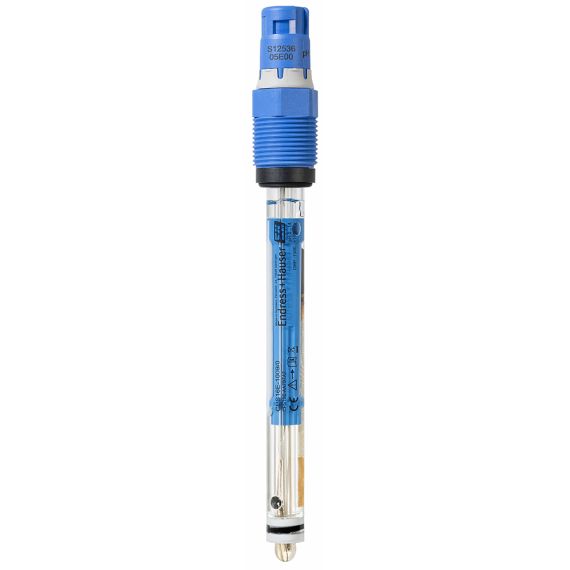

E+H Memosens CPS16E pH / ORP Sensor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measurement range
- ORP: –1,500 to 1,500 mV
- Application A: 1 to 12 pH
- Application B: 0 to 14 pH
- Process temperature
- Application A: 5 to 176°F (–15 to 80°C)
- Application B: 32 to 275°F (0 to 135°C)
- 0.8 to 17 bar (11.6 to 246.5 psi) absolute process pressure
- IP68 protection
- ATEX, IECEx, CSA C/US, NEPSI, Japan Ex, and INMETRO approvals
The E+H Memosens CPS16E pH / ORP sensor is suitable for simultaneous pH and ORP measurement in applications with long-term stable conditions. Thanks to its pH and ORP elements, the sensor offers a better process overview and enables tighter process control. The sensor features a platinum electrode for measuring reference impedance, a large PTFE ring junction, a poison-resistant reference with an ion trap, an integrated NTC 30K temperature sensor for effective temperature compensation, and the ability to detect glass breakage and blockage.
The CPS16E features Memosens 2.0 digital technology, offering extended data storage for predictive maintenance. The pH/ORP sensor resists moisture and enables lab calibration which makes the operator's daily tasks easier and maximizes process integrity.
Memosens CPS16E pH/ORP sensor applications:
- Chemical processes
- Pulp and paper industry
- Incinerator plants
- Mining
- Wastewater
- Drinking, cooling, and well water
