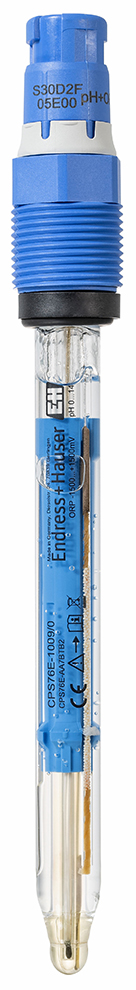

E+H Memosens CPS76E pH Sensor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measures pH value, ORP, rH value, temperature
- Measurement range
- ORP: –1,500 to 1,500mV
- Application B: 0 to 14 pH
- Application H: 0 to 12 pH
- Process temperature range
- Applications B and H: 32 to 284°F (0 to 140°C)
- Version TB: 32 to 284°F (0 to 140°C)
- Version TU, TP (pressurized reference):
- 32 to 284°F (0 to 140°C)
- 140°C (284°F) for sterilization only
- Maximum 212°F (100°C) in continuous operation due to increasing pressure drop at T>212°F (100°C)
- Process pressure range
- Application B: 0.8 to 14 bar (11.6 to 203 psi) absolute
- Application H 0.8 to 7 bar (11.6 to 101.5 psi) absolute
- Suitable for CIP and SIP cleaning, autoclavable
- IP68 protection
- ATEX, IECEx, CSA C/US, NEPSI, Japan Ex, and INMETRO approvals
The E+H Memosens CPS76E pH sensor is the heavy-duty specialist for simultaneous pH and ORP measurement. Its unique, contamination-resistant reference guarantees stable measurement in polluted, poisoning media and in media with low conductivity. The CPS76E features a platinum electrode for measuring reference impedance. The acrylamide-free gel functions as a bridging electrolyte, and is sterilizable and very resistant to chemical corrosion.
Memosens 2.0 digital technology and non-contact, inductive signal transmission allow the sensor to combine maximum process integrity with simple operation. It resists moisture, enables lab calibration, and offers extended storage of calibration and process data, providing the perfect basis for predictive maintenance.
