ICON P14G Series General Purpose pH Sensors
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 4-20mA and RS485 output
- 7.00 ±0.25% accuracy
- Temperature compensated
- Double salt bridge
- No preamp required
- 3/4" NPT connection
- Operating temperature 14 to 176°F
- 150 Psi at 140°F maximum pressure
- Flat planar or bulb style transmitter sensors
- PT100 and Ryton options available, contact for pricing
- Nexus Technology - Solid KCL reference junction - Eliminates reference poisioning and extends life expectancy (Application specific)
- IO Link add on - contact for pricing

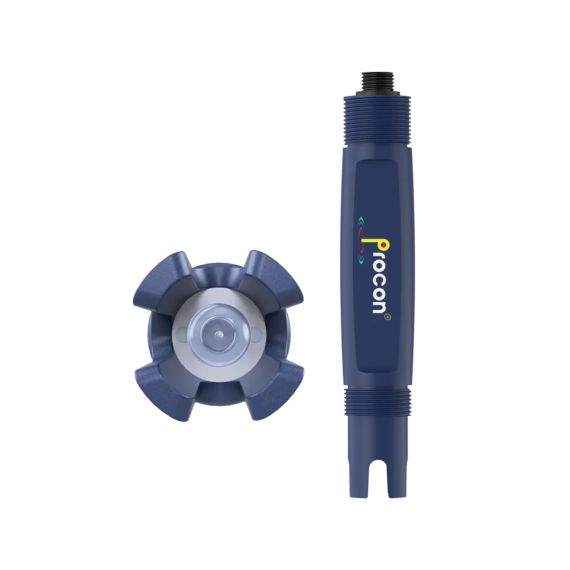

The ProCon P14G Series General Purpose pH Sensor offers long-term reliability with fast response times and high accuracy in a wide range of general process applications.
The pH sensor has been specifically engineered with a double ceramic reference diaphragms that provide highly responsive pH indication. The double salt bridge junction coupled with the PTFE reference technology is the foundation for all P14G series electrodes. The inner reference chamber is charged with potassium chloride (KCl) gel.
All measurement functions are combined in one compact body — measuring electrode, temperature sensor and an inner reference chamber. The 2-wire 4-20mA, 4-wire or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers. No pre-amp required.
Applications
- Process Control
- Water Quality
- Sanitization Systems
- Neutralization Systems
- Effluent Monitoring
- Pool and Spa Control
- Aquatic Animal Systems
- Cooling Towers
