Features
- 4-20mA and RS485 output
- ±1mV accuracy
- Temperature compensated
- Nexus solid KCI reference, eliminates reference poisoning - extends life expectancy
- No preamp required
- 3/4" NPT connection
- -1000mV to 1000mV ORP measurement range
- Operating temperature 14 to 176°F
- 145 psi 10 bar maximum pressure

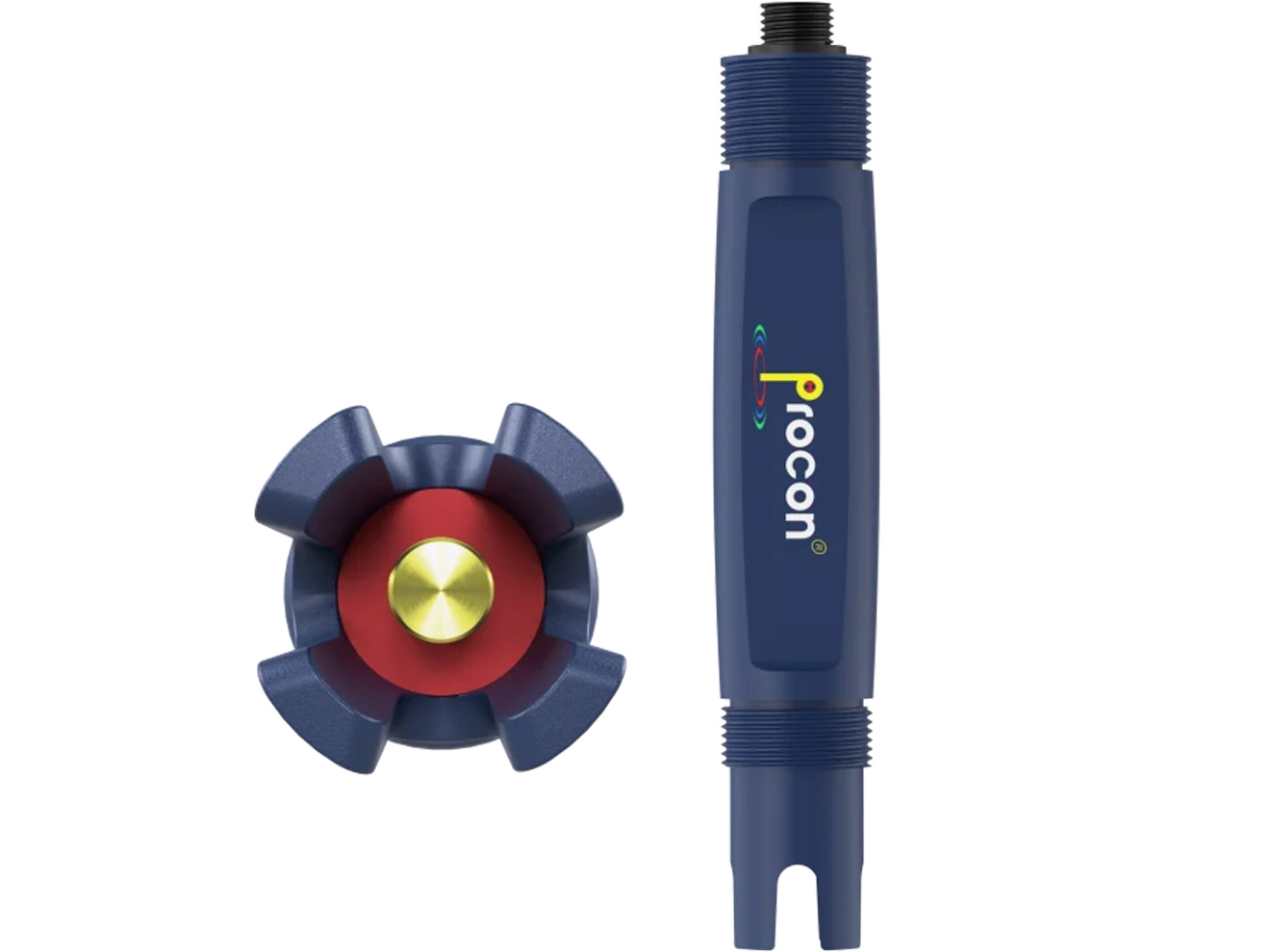

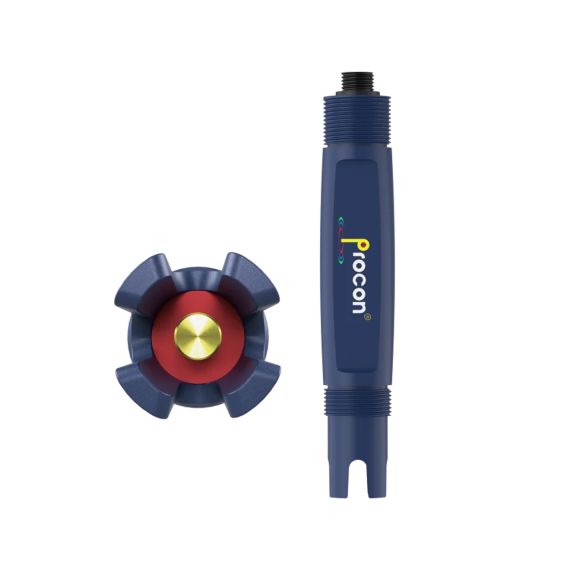

The ProCon R7C Nexus series is engineered for ruggedness, longevity and accuracy and features a gold electrode for enhance accuracy.
The double junction coupled with the solid Nexus KCl infused reference makes the R7C ORP sensor transmitter an excellent choice for complex process media applications. All measurement functions are combined in one compact body — measuring electrode, temperature sensor and an inner reference chamber.
The 2-wire 4-20mA, 4-wire or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers.
Applications
- Process Control
- Water Quality
- Sanitization Systems
- Neutralization Systems
- Effluent Monitoring
- Pool and Spa Control
- Aquatic Animal Systems
- Cooling Towers
