Features
- 4-20mA and RS485 output
- ±1mV accuracy
- Temperature compensated
- Nexus solid KCI reference
- No preamp required
- 3/4" NPT connection
- -1000mV to 1000mV ORP measurement range
- Operating temperature 14 to 176°F
- 145 psi 10 bar maximum pressure
- Solid KCl reference junction, eliminates reference poisoning, extends life expectancy
- No pre-amp required

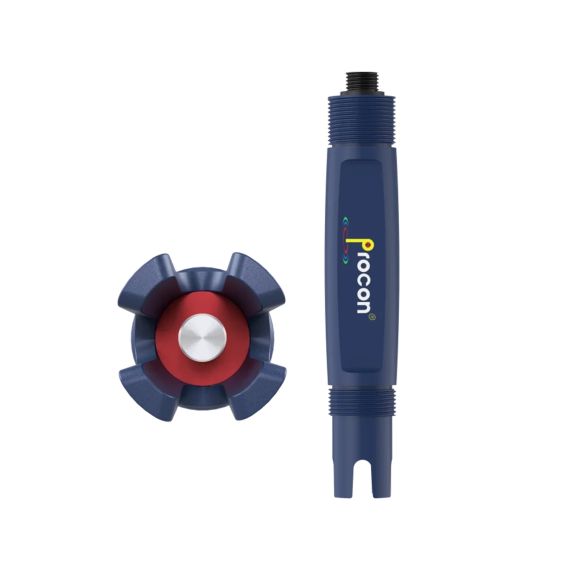

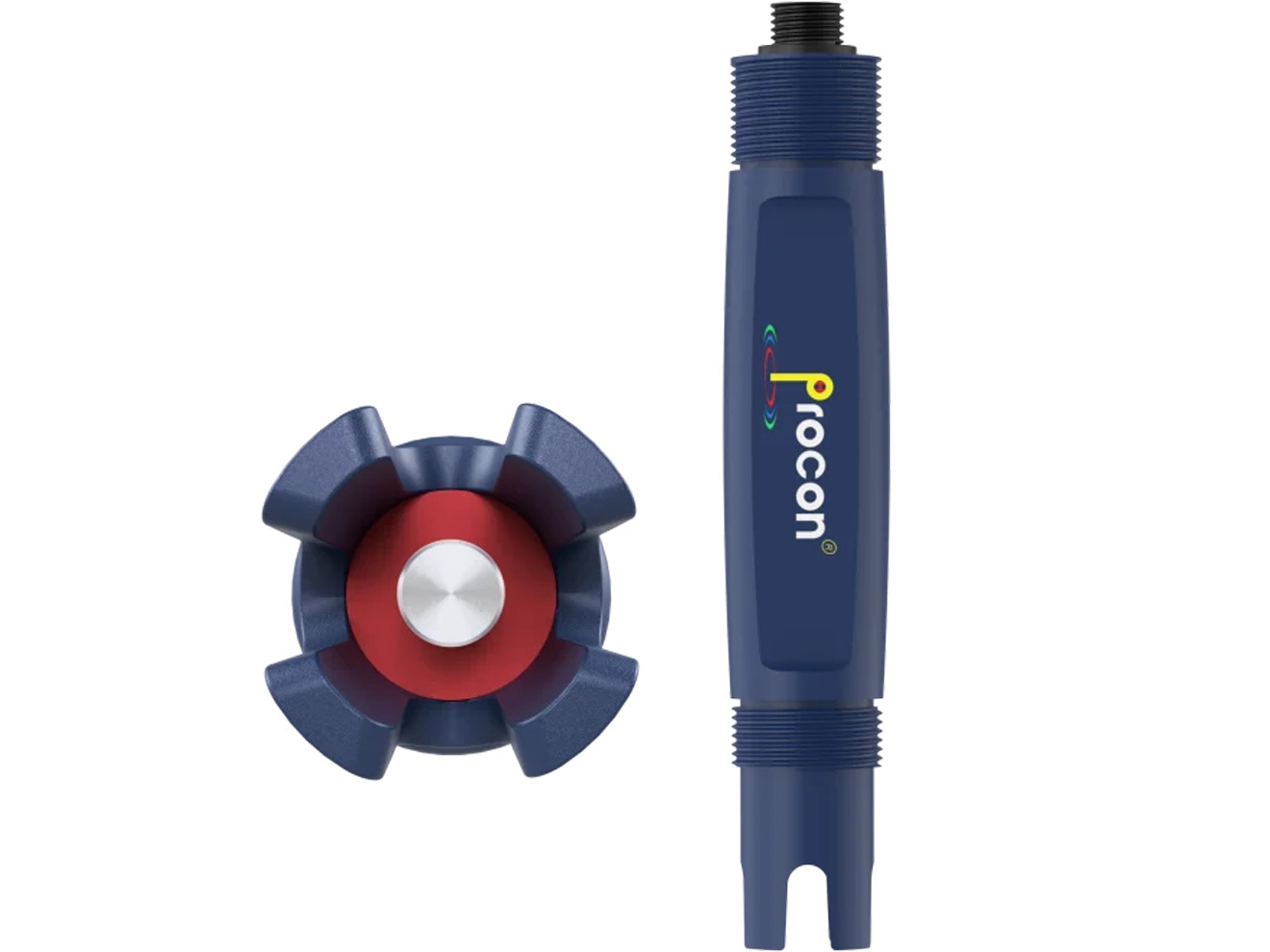

The ProCon R7G Nexus series is engineered for ruggedness, longevity, and accuracy and features a platinum electrode for enhanced accuracy.
The double junction coupled with the solid Nexus KCl infused reference makes the R7G ORP sensor transmitter the perfect choice for general process media applications. All measurement functions are combined in one compact body — measuring electrode, temperature sensor, and an inner reference measuring electrode chamber.
The 2-wire 4-20mA, 4-wire, or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers.
Applications
- Process Control
- Water Quality
- Sanitization Systems
- Neutralization Systems
- Effluent Monitoring
- Pool and Spa Control
- Aquatic Animal Systems
- Cooling Towers
