Seametrics TempHion Water Quality Sensor Bromide 316 Stainless, Cabled Cartridge Type Titanium compatible sensor/cable connector option (non vented)

CODE:

Write a review

$6,839³⁰

In stock

Options:

Cable Lengths:

Connector Option:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Options	Sort by Cable Lengths	Sort by Connector Option
$6,515⁶⁰	In stock + −	2G31511	Options: Bromide 316 Stainless, Cabled Cartridge Type	Cable Lengths: None	Connector Option: None
$6,823⁷⁰	In stock + −	2G31511 + 8A6V222	Options: Bromide 316 Stainless, Cabled Cartridge Type	Cable Lengths: None	Connector Option: Stainless steel field connector option (non vented)
$6,839³⁰	In stock + −	2G31511 + 8A6V104	Options: Bromide 316 Stainless, Cabled Cartridge Type	Cable Lengths: None	Connector Option: Titanium compatible sensor/cable connector option (non vented)
$6,320⁶⁰	In stock + −	2G31504	Options: pH/ORP 316 Stainless, Cabled Bulb Type	Cable Lengths: None	Connector Option: None
$6,628⁷⁰	In stock + −	2G31504 + 8A6V222	Options: pH/ORP 316 Stainless, Cabled Bulb Type	Cable Lengths: None	Connector Option: Stainless steel field connector option (non vented)
$6,644³⁰	In stock + −	2G31504 + 8A6V104	Options: pH/ORP 316 Stainless, Cabled Bulb Type	Cable Lengths: None	Connector Option: Titanium compatible sensor/cable connector option (non vented)
$5,751²⁰	In stock + −	2G11504	Options: pH/ORP 316 Stainless, Cableless	Cable Lengths: None	Connector Option: None
$6,059³⁰	In stock + −	2G11504 + 8A6V222	Options: pH/ORP 316 Stainless, Cableless	Cable Lengths: None	Connector Option: Stainless steel field connector option (non vented)
$6,074⁹⁰	In stock + −	2G11504 + 8A6V104	Options: pH/ORP 316 Stainless, Cableless	Cable Lengths: None	Connector Option: Titanium compatible sensor/cable connector option (non vented)
$6,541⁶⁰	In stock + −	2G12504	Options: pH/ORP Titanium, Cableless	Cable Lengths: None	Connector Option: None
$6,849⁷⁰	In stock + −	2G12504 + 8A6V222	Options: pH/ORP Titanium, Cableless	Cable Lengths: None	Connector Option: Stainless steel field connector option (non vented)
$6,865³⁰	In stock + −	2G12504 + 8A6V104	Options: pH/ORP Titanium, Cableless	Cable Lengths: None	Connector Option: Titanium compatible sensor/cable connector option (non vented)

316 stainless steel, fluoropolymer, acetal, and PTFE construction
Solution ground for excellent noise protection
Operates on low power
Measures pH at up to 150 psi
RS485 network
200,000+ records stored in non-volatile memory
Dual protocol (Modbus® and SDI-12)
Narrow 0.75″ diameter, 17.625″ length
Available cable-less or with a variety of cable options—polyethylene, polyurethane, or FEP

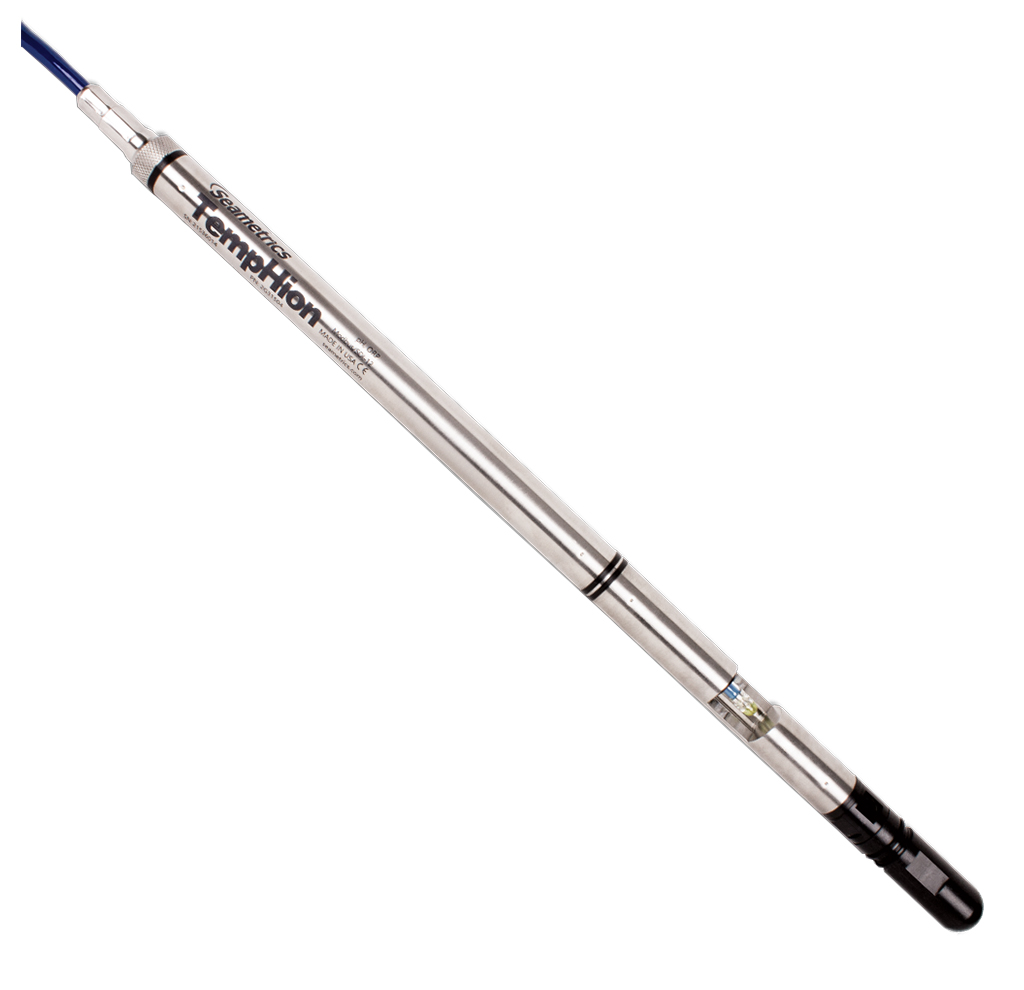

The Seametrics TempHion is a submersible water quality sensor and datalogger that includes a ph/ORP or Bromide element as well as one thermistor-based temperature element. It is a microprocessor-based sensor with built-in data logging. The internal processor in the TempHion allows for calibration, using calibration utilities in Aqua4Plus. Once calibrated, this calibration data is stored in non-volatile memory within the Smart Sensor. When data is collected, this calibration information is applied to the data, resulting in highly accurate readings at a wide range of temperatures.

The TempHion is powered internally with two replaceable AA batteries. Alternately it can be powered with an external auxiliary power supply for data intensive applications. The unit is programmed using the Aqua4Plus control software. Once programmed the unit will measure and collect data on a variety of time intervals. Users can also use their own Modbus RTU or SDI-12 software or logging equipment to read measurements.

Seametrics TempHion Water Quality Sensor Bromide 316 Stainless, Cabled Cartridge Type Titanium compatible sensor/cable connector option (non vented)
