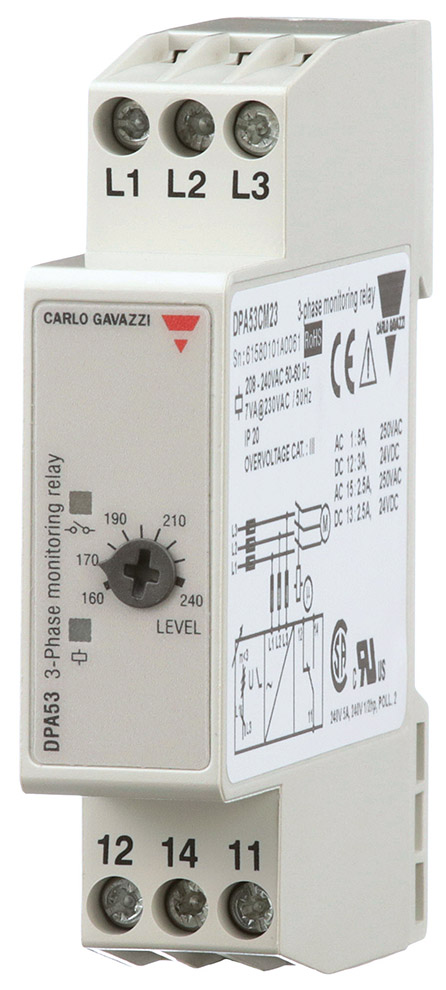

Carlo Gavazzi DPA53 Monitoring Relay 208 to 240VAC

CODE:

Write a review

$384⁸⁰

In stock

Power Supply Range:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Power Supply Range
$384⁸⁰	In stock + −	DPA53CM23	Power Supply Range: 208 to 240VAC
$392⁶⁰	In stock + −	DPA53CM48	Power Supply Range: 380 to 480VAC

Features

Detects when all three phases are present and in proper sequence
Measures its own power supply
380 to 480VAC or 208 to 240VAC power supply range
5A SPDT relay output normally energized
17.5mm DIN-rail housing (DIN 43880)
LED indication for power supply, output relay and ON

The Carlo Gavazzi DPA53 monitoring relay is a three-phase monitoring relay used for detection of incorrect phase sequence, and total or partial phase loss. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays. The proper undervoltage level can be set according to the phase-phase voltage and the desired sensitivity. The relay operates when all the phases are present, the phase sequence is correct and each phase-phase voltage is above the adjusted setpoint. The relay releases when one phase-phase voltage drops below the setpoint or when the phase sequence is incorrect. The DPA53 is DIN-rail mountable, and the 17.5mm housing is suitable for either back or front panel mounting.
