Carlo Gavazzi DPA55 Monitoring Relay
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Detects when all three phases are present and in proper sequence
- Detects if voltage is at the desired level (± 10% or ±15%)
- Measures its own power supply
- 208 to 240VAC power supply range
- 5A SPDT relay output normally energized
- 17.5mm DIN-rail housing (DIN 43880)
- LED indication for power supply, output relay and ON

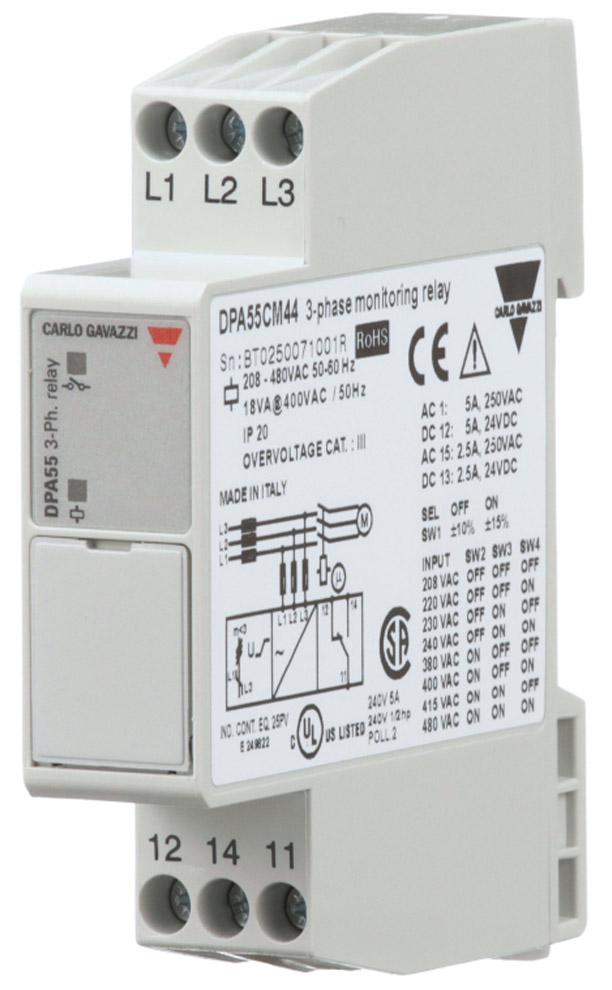

The Carlo Gavazzi DPA55 monitoring relay is a three-phase monitoring relay used for detection of incorrect phase sequence, and total or partial phase loss while also detecting if the voltage is at a desired level (±10% or ±15%) as set by the user. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays. The relay operates when all the phases are present, the phase sequence is correct and each phase-phase voltage is within the desired tolerance. The relay releases when one phase-phase voltage drops below the setpoint or when the phase sequence is incorrect. The DPA55 is DIN-rail mountable, and the 17.5mm housing is suitable for either back or front panel mounting.
Carlo Gavazzi DPA55 Monitoring Relay Applications
- Elevators and escalators
- HVAC and refrigeration
- Water and wastewater
- Plastics and rubber
- Food and beverage
- Packaging and wrapping
- Material handling and conveyors
