Carlo Gavazzi DPC01 Monitoring Relay 208 to 240VAC 50 to 400Hz
DPC01DM23400HZ
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Frequency | Sort by Power Supply |
|---|---|---|---|---|
$1820
|
In stock
|
DPC01DM23400HZ
|
Frequency:
|
Power Supply:
|
|
$1820
|
In stock
|
DPC01DM23
|
Frequency:
|
Power Supply:
|
|
Contact us for a price
|
In stock
|
DPC01DM44
|
Frequency:
|
Power Supply:
|
|
$1820
|
In stock
|
DPC01DM48
|
Frequency:
|
Power Supply:
|
|
$17810
|
In stock
|
DPC01DM69
|
Frequency:
|
Power Supply:
|
Features
- Max 690VAC power supply range
- Two 8A SPDT relay outputs
- Ultra-high harmonic immunity for very noisy environments
- Adjustable power ON delay to avoid nuisance tripping at startup
- DIN-rail mounting
- Output and status LED indication

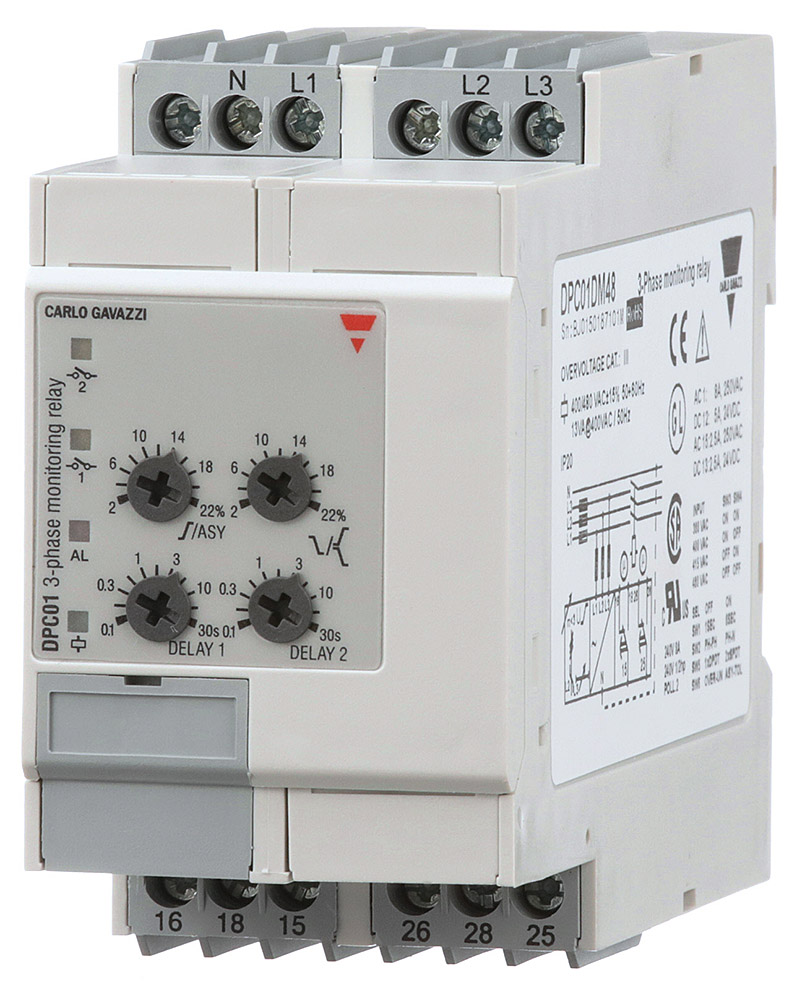

The Carlo Gavazzi DPC01 monitoring relay operates on three-phase and three-phase + neutral systems, and operates with three or four wires. The DPC01 monitors phase loss and phase sequence, overvoltage and undervoltage, voltage asymmetry and tolerance. The relay operates when all the phases are present, the phase sequence is correct and the input voltage levels are within set limits. Alarm delay is configurable by front dials, and each of the two alarms (under/overvoltage and asymmetry/tolerance) can be set individually. Power supply is provided by the monitored mains.
Carlo Gavazzi DPC01 Monitoring Relay Applications
- Elevators and escalators
- HVAC and refrigeration
- Water and wastewater
- Aviation, maritime and railroad
- Food and beverage
- Plastics and rubber
- Packaging and wrapping
- Material handling and conveyors
