Features
- 7 input ranges:
- 0 to 5 AAC
- 0 to 10 AAC
- 0 to 15 AAC
- 0 to 20 AAC
- 0 to 25 AAC
- 0 to 30 AAC
- 0 to 50 AAC
- 4 to 20 mADC Output
- 100AAC max continuous current
- 300AAC max overload current
- 40Hz to 1kHz frequency range
- Easy interface to PLC or setpoint relays
- 22.5mm small Euronorm housing
- DIN rail mounting

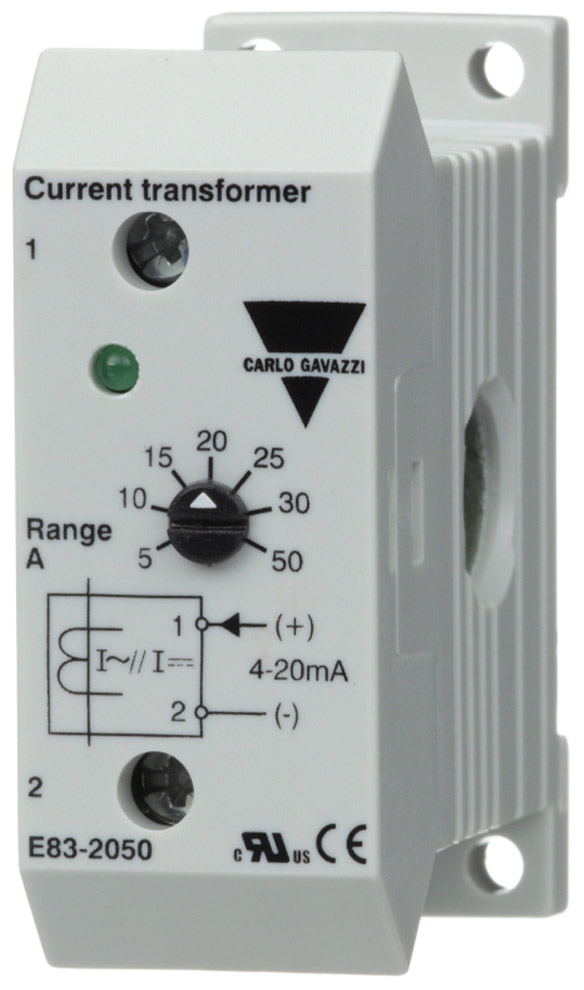

The Carlo Gavazzi E83-2050 monitoring relay is an AC current metering transformer with 7 knob-selectable ranges. Output from the E83-2050 is 4-20mADC in accordance with IEC 60381-1. In the 5A range, the relay is can be applied as a 4-20mADC signal converter for larger standard AC current transformers with 5AAC secondary output.
The E83-2050 can be used in conjunction with other Carlo Gavazzi relays (DIB01, PIB01, DIC01 or PIC01) or it can be directly connected to a PLC.
