Features
- Up to 660 VAC rated voltage
- Up to 90 AAC rated operational current (AC-51)
- Up to 18000 A²s for I²t for protection coordination with M.C.Bs
- 100kA short circuit current rating according to UL508
- Integrated varistor output protection
- 45 to 65 Hz frequency range
- Input terminal options:
- Screw
- Pluggable spring
- Output terminal options:
- Screw
- Box clamp

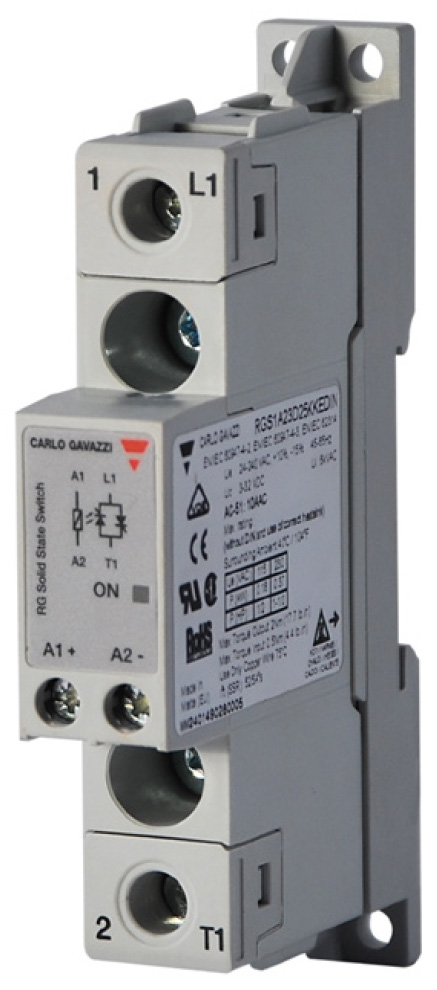

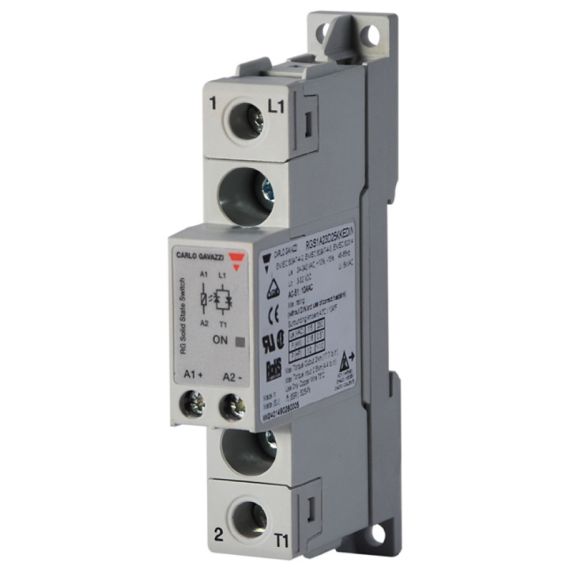

The Carlo Gavazzi RGS solid state relay is a 1-phase, small form factor relay with ratings up to 90 AAC. The integrated varistor provides output protection from overvoltages and breaking down due to uncontrolled transients. The high I²t specification permits easy type 2 protection co-ordination with B-type minitaure circuit breakers.
Applications:
- Plastic injection machines
- Extrusion machines
- Blow molding machines
- Thermoformers
- Dryers
- Electrical ovens
- Fryers
- Shrink tunnels
- Air handling units
- Sterilization equipment
- Climatic chambers
- Ovens and furnaces
- Ambient heating
