AEMC PEL 115 Power and Energy Logger PEL 115 power and energy logger only (without sensors)
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
$11,16700
|
In stock
|
2137.56
|
Model:
|
|
$12,60350
|
In stock
|
2137.58
|
Model:
|
Features
- Monitors single, split, and three-phase (Y, Δ) power systems
- Measures volts, amps, watts, VARs, kWh, power factor, and harmonics to the 50th order
- 5 voltage and 4 current measurement inputs
- Built in Wi-Fi, Bluetooth, Ethernet, and USB for flexible communication
- IP67 rated enclosure and sensors for reliable outdoor and field use
- Powered from phase inputs (up to 1000VAC) or external wall adapter
- Configurable from the front panel, with DataView software, or Android app
- Supports NEC 220.87 load studies with built-in templates and auto reporting
- SD card storage up to 32 GB for long term data logging
- Includes free DataView software for configuration, data analysis, and reporting

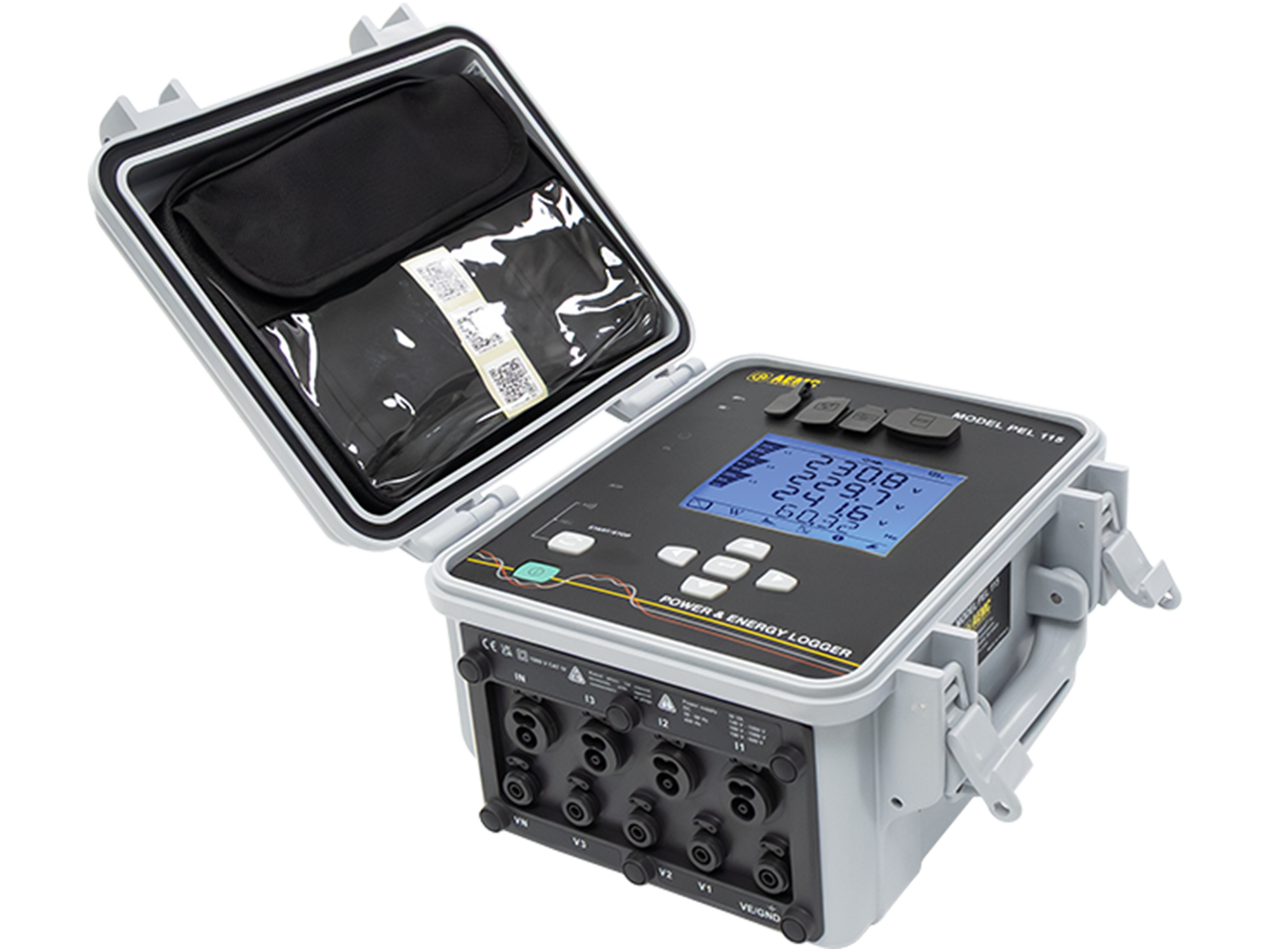

AEMC PEL 115 Power and Energy Logger is a versatile three-phase power and energy logger designed for use in demanding field or outdoor environments, featuring an IP67 rated watertight case. It supports single, dual (split-phase), and three-phase (Y, Δ) systems with four voltage and four current channels, automatically recognizing connected sensors and probes. This model offers comprehensive monitoring with up to 32 configurable alarms, remote alerts, and automated reporting capabilities via multiple connectivity options including USB, Ethernet, Wi-Fi, and remote access through DataViewSync software.
Equipped with data storage via an SD card and powered directly from electrical phases to reduce battery dependency, the PEL 115 delivers real time monitoring and analysis from anywhere. Included free DataView software enables users to configure the device, retrieve data, generate reports, and perform detailed power consumption analysis. Applications range widely from predictive and preventive maintenance to energy audits, cost optimization, and IT infrastructure upkeep.
