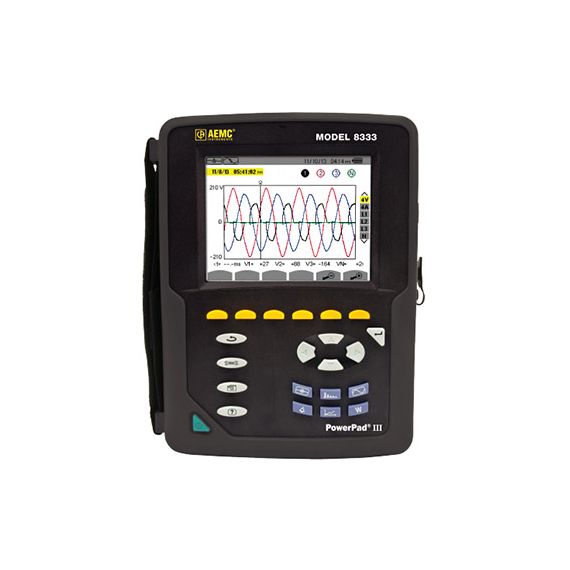

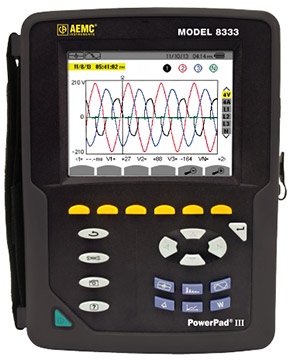

AEMC PowerPad III Model 8333 Power Quality Analyzers Model 8333 with standard accessories (no probes)
2136.10
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Kit Options |
|---|---|---|---|
$5,41022
|
In stock
|
2136.10
|
Kit Options:
|
|
$6,76412
|
In stock
|
2136.11
|
Kit Options:
|
|
$6,80347
|
In stock
|
2136.12
|
Kit Options:
|
Features
- 4 voltage and 3 current input terminals
- 2000V phase to phase
- 1000V phase to neutral
- Up to 500kV voltage ratio
- 1 to 50th harmonic measurement including direction
- 40 to 70Hz frequency
- Real-time color waveforms
- Captures up to 51 transients
- 2GB of memory for trend data
- 4000 alarm events
- IEC 61000-4-30 Class B
- Safety rated to 600V CAT IV
- 3 year warranty if registered within 30 days from purchase
The AEMC PowerPad III model 8333 power quality analyzers are easy-to-use, compact and shock resistant. The 8333 has memory available for storing trend data, alarms, transients, and snapshot data. The user can store up to 12 screen snapshots, up to 51 captured transients that contain four cycles for each active input, and 4,000 alarm events from up to 10 different parameters. Trend data can also be recorded for days, weeks or even months.
AEMC PowerPad III Model 8333 Power Quality Analyzers Applications
- Verification of power distribution circuits
- In-plant troubleshooting of power distribution panels and individual machinery
- Monitor pad mount transformers and phase unbalances
- Determine harmonic problems originating from source or load
- Determine transformer K-Factor
- Energy metering (kVAh, VARh, kWh)
