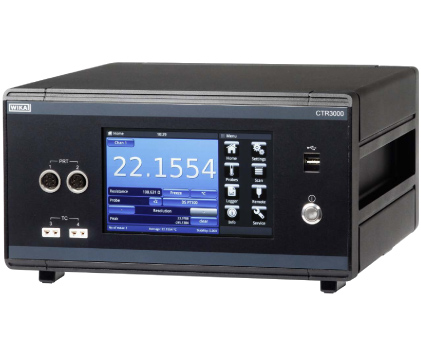

WIKA CTR3000 Precision Thermometer
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Thermocouple and resistance thermometer measurements
- 4 input channels
- PRT/SPRT measuring ranges:
- 0 to 500Ω
- -328 to 1,764°F (-200 to 962°C)
- 3 and 4 wire measurement
- Thermocouple measuring ranges:
- ±100 mV
- -346 to 3,308°F (-210 to 1,820°C)
- Type B, E, J, K, N, R, S, T in accordance with EN 60584
- Large graphic touchscreen
- Thermistor 0 to 500 kΩ
- Scanner box:
- Up to 4 modules (10 channels per module)
- Max. 44 channels (in total)
The Wika CTR3000 Precision Thermometer provides a complete measurement and control interface for users wishing to make high-accuracy temperature measurements or calibrate thermometers. It supports a wide range of thermometer types including 25Ω SPRTs, 100Ω PRTs, thermistors and thermocouples. The CTR3000 is a high-accuracy instrument designed for laboratory and industrial temperature measurement and calibration applications.
The instrument will operate with all 3 and 4 wire (S)PRTs (25Ω, 100Ω) platinum resistance thermometers as well as most standard international thermocouple types and NTC thermistors. The following temperature measurement units are selectable: °C, °F, K. Base measuring units mV and Ω are also displayed. The temperature values will be calculated through common conversion of the base measurement.
Applications for the CTR3000 include:
- Pharmaceutical industry
- Industry (laboratory, workshop and production)
- Temperature sensor and transmitter manufacturers
- Calibration service companies and service industry
