IKM Instrutek PM205 Ex Digital Pressure Meter -1 to 60 Bar, 0.2% FS accuracy
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Pressure Range |
|---|---|---|---|
$1,75315
|
In stock
|
PM205Ex-0060
|
Pressure Range:
|
|
$1,75315
|
In stock
|
PM205Ex-1000
|
Pressure Range:
|
|
$1,75315
|
In stock
|
PM205Ex-0300
|
Pressure Range:
|
|
$1,75315
|
In stock
|
PM205Ex-0700
|
Pressure Range:
|
Features
- -1 to 1000 bar range, selectable bar/psi
- Less than 0.1 % FS accuracy
- 1000 hours continous operation
- Auto power off
- High reliability, high resistance against shocks
- Protection class: IP65
- Well suited for marine and industrial applications
- Type approved by DNV-GL for use onboard ships

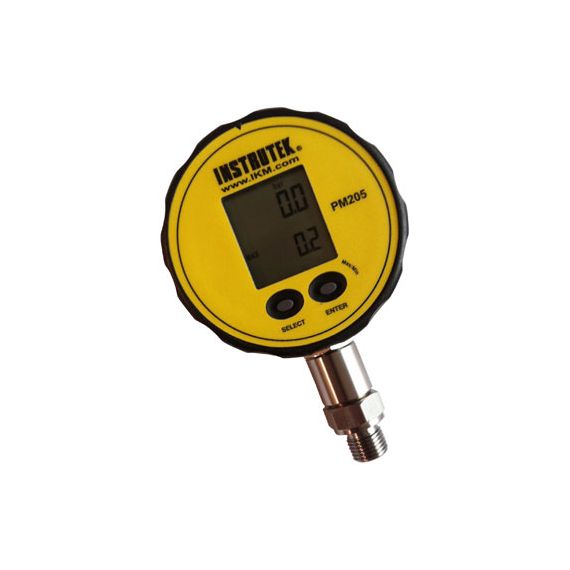

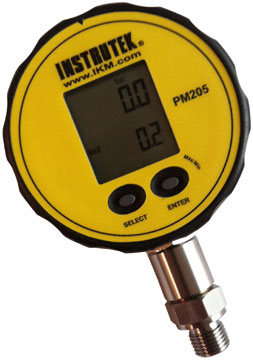

The IKM Instrutek PM205 Ex Digital Pressure Meter is a microprocessor controlled, accurate and versatile digital pressure measuring and calibration instrument with integrated fast peak, max and min function. In the MANO-Mode the pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the MAX or MIN pressure since the last RESET. In the peak mode the pressure is measured 5,000 times per second and is brought to the display twice per second.
The EEx ia version of PM205 incorporates an additional protection switch. Functions, ranges and accuracy are identical to the standard version.
The PM205 has a ZERO function that allows the user to set any value as a new zero reference. Barometric pressure variations can thus be compensated. The digital pressure meter is supplied with an internal battery with 1000 hours continous operation in MANO-Mode, guaranteed by the AUTO SWITCHOFF function, which activates if no key inputs are detected within the previous 15 minutes.
This digital pressure gauge finds its specific utilization in marine industry, onboard ships and mobile offshore units and in general manifold industrial fields.
