Condec PIN8000 Pneumatic High Source Pressure Intensifier Self-contained enclosure with carrying handles 230 VAC, 50/60 Hz
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Power | Sort by Enclosure |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
PIN8000AA
|
Power:
|
Enclosure:
|
|
Contact us for a price
|
In stock
|
PIN8000BA
|
Power:
|
Enclosure:
|
Features
- Clean dry gaseous nitrogen or clean dry air
- 10,000 psi max output
- Operating: 40 to 140°F (4 to 60°C)
- Precision regulator to adjust input pressure
- Three gauges to monitor:
- Regulated pressure
- Accumulated pressure
- Output pressure
- Patented micro-metering valves
- Quick-disconnect fittings and hoses
- self-contained enclosure or 19" rack mount options

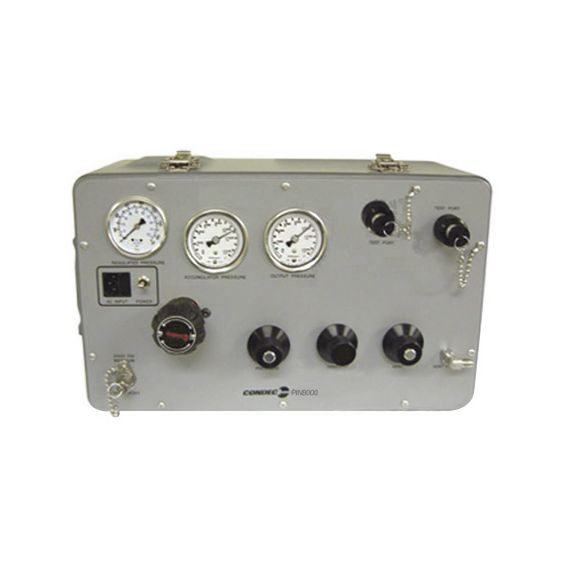

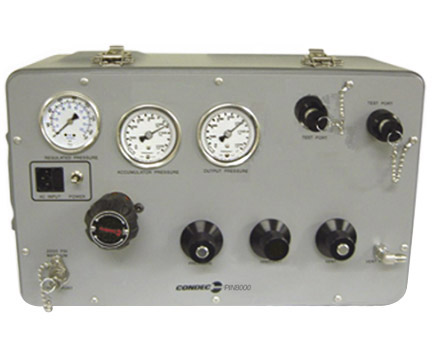

The Condec PIN8000 pneumatic high source pressure intensifier features two OUTPUT ports, and the patented Orion 3A valve, with vernier for finger-tip adjustments. The PIN8000 operates using any clean dry air or gaseous nitrogen.
Containing an automatic precision intensifying system, thes PIN8000 generates up to 10 times the input pressure. This easy-to-operate system provides fingertip control within the exclusive patented precision Orion 3A valve. By using the soft-seal micro-metering valves for pressure adjustment and venting, in conjunction with the vernier, user gains finite control to obtain exact pressure readings.
By properly setting the included Condec REG 1000 regulator, units under test are protected from permanent damage due to overpressure. The PIN8000 eliminates the inconvenience and physical stress of hand pumps. It has two output (test) ports for connecting to a measuring device and virtually any electronic calibrator. For added convenience, the removable cover allows the PIN8000 to be positioned at different angles for easy operation in tight spaces.
