Condec Source 3000 Pressure Source Source 3000 w/ Swagelok QC4 output port / QC4 Male Fill port
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Output Port / Fill Port Options |
|---|---|---|---|
Contact us for a price
|
In stock
|
65315
|
Output Port / Fill Port Options:
|
|
Contact us for a price
|
In stock
|
131385
|
Output Port / Fill Port Options:
|
|
Contact us for a price
|
In stock
|
98917
|
Output Port / Fill Port Options:
|
|
Contact us for a price
|
In stock
|
98916
|
Output Port / Fill Port Options:
|
Features
- Self-contained nitrogen cylinder
- "Overpressure Protection" regulator
- Two ports to connect to unit under test as well as a precision calibrator
- Works with all pressure calibrator models
- Precisely dial into required pressures with patented valve assembly
- 15.2 cubic foot nitrogen at 3000 psi
- Aluminum carrying case
- Front panel gauges inform operator of internal cylinder pressure level

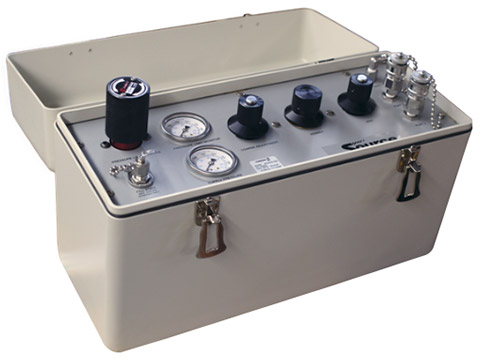

The Condec Source 3000 is a quick, accurate, and portable pressure source, designed for extended use wherever your job takes you.
Fully pneumatic, the Condec Source 3000 pressure source offers a clean and dry pressure up to 3000 psi. The Condec Source 3000 pressure source's pressure generator is equipped with a large-capacity cylinder that ensures you won't run out of nitrogen in the middle of a job. It also eliminates the inconvenience and physical stress of hand pumps. The Condec Source 3000 pressure source has two ports for connecting to a measuring device and virtually any electronic calibrator.
The portable pneumatic Condec Source 3000 pressure source is a unique device that incorporates a pressure vernier to allow you to dial in exact pressure readings, which eliminates the risk of costly damage from overshoot. The Condec Source 3000 pressure source is housed in an aluminum carrying case that provides lightweight portability as well as protection in industrial environments.
The Source 3000 comes with multiple output ports and fill port combinations:
- The 98916 comes with the Source 3000; swagelok QC4 quick-disconnect female output (test) ports and QC4 quick-connect male fill port (buna-N seals)
- The 98917 comes with the Source 3000; Ralston male quicktest/check-valve output (test) ports and standard 7/16 -20 AN male fill port (buna-N seals)
- The 131385 Source 3000; 7/16 -20 AN male output (test) ports and fill port (buna-N internal seals) Note: each port requires one cheat seal PN 54854
