Bourdon MAG Series Pressure Gauge
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Size:
- 2.5in (63mm)
- 4in (100mm)
- Accuracy:
- 2.5in: ± 2/1/2% of span
- 4in: ± 1% of span

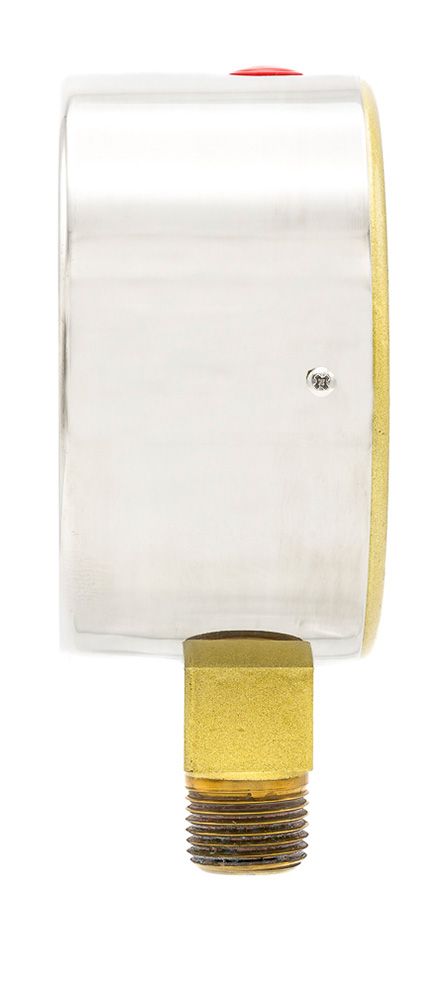

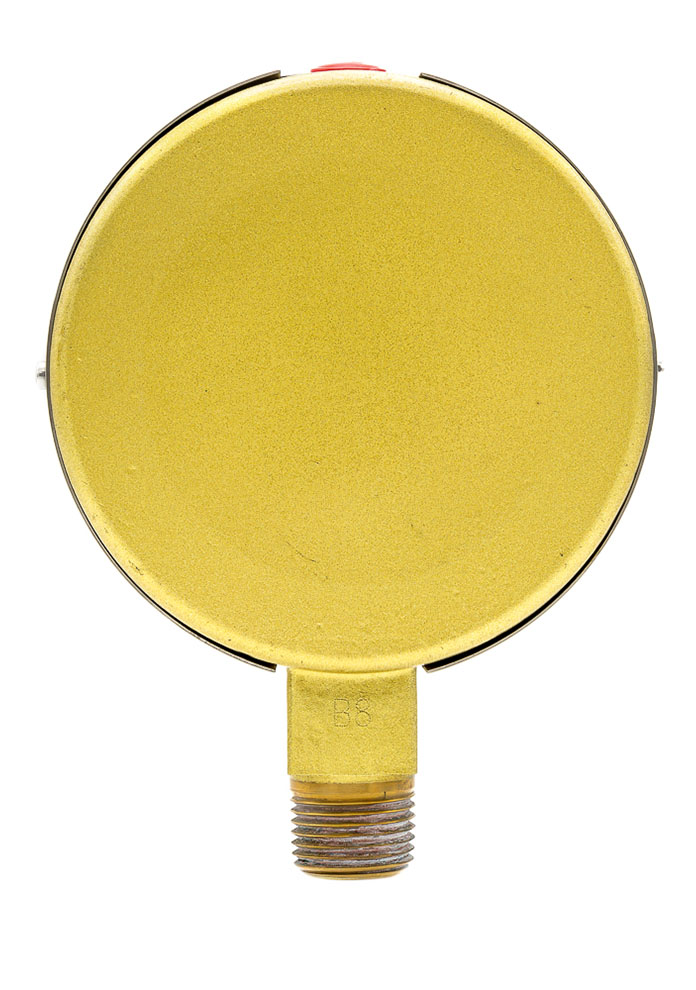

- Forged one piece case and socket
- Powder coated case
- Gold plated or stainless steel cover ring (depending on size selected)
- Aluminum black pointer
- IP 66 (EN 60529) protection rating

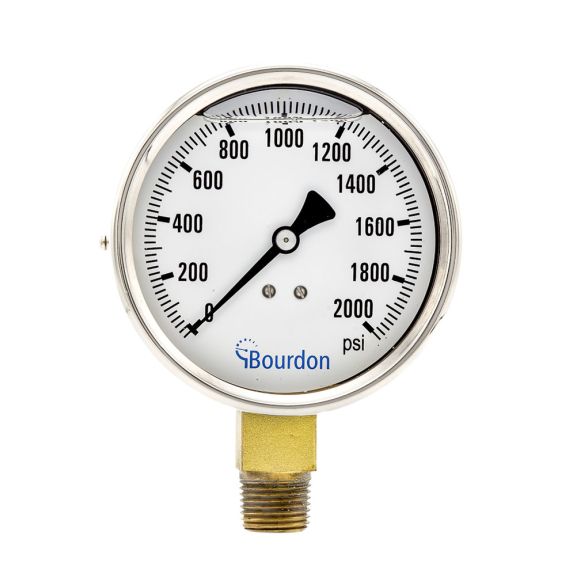

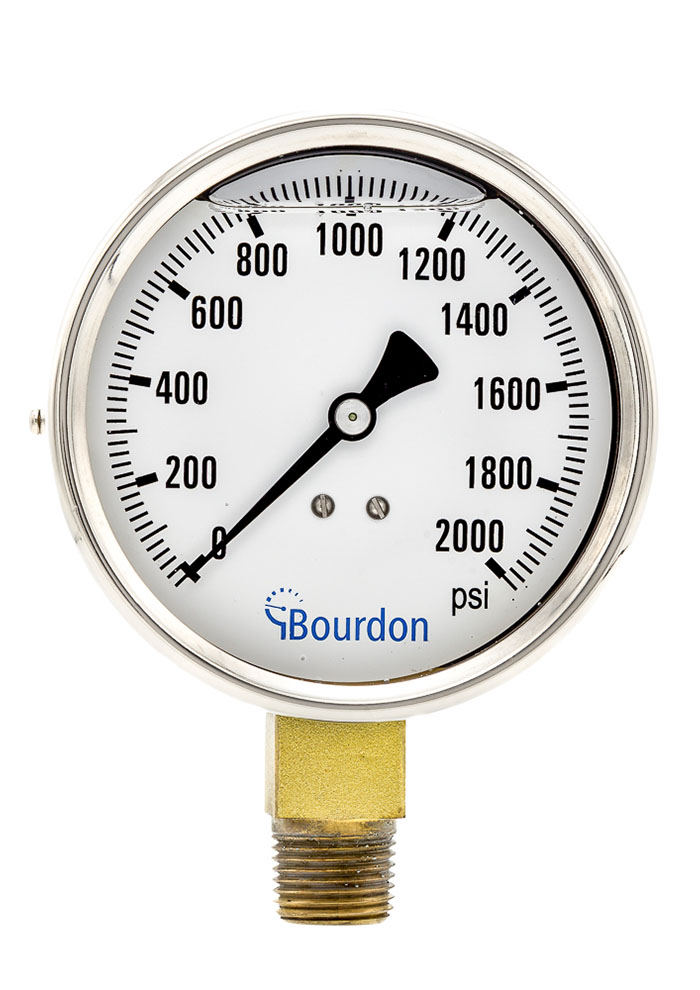

The Bourdon MAG Series pressure gauge is an analog, liquid-filled gauge measuring pressures up to 15,000psi. The liquid fill and restrictor come standard for vibration and pressure pulsation, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil.
The MAG Series features a one piece, forged brass case and socket, and has copper alloy process connection, bourdon tube, and restrictor. The 2.5in (63mm) gauge size has a gold plated ABS cover ring and a standard accuracy of ± 2/1/2% of span, while the 4in (100mm) size has a polished stainless steel cover ring and a standard accuracy of ± 1% of span. Available process connections include 1/4 or 1/2in NPT.
Applications
- Hydraulic pump systems
- Compressors
- Oil tank batteries
- Oil field pumpjacks
- Fire trucks
- Mobile hydraulics
