Features
- 3.94in (100mm) nominal size
- For corrosive gases and liquids
- Stainless steel or Monel wetted parts
- Dry and liquid-filled versions
- Lloyd's Register approval
- IP 65 (EN 60529) protection rating
- ATEX II2GDc-IM2c option

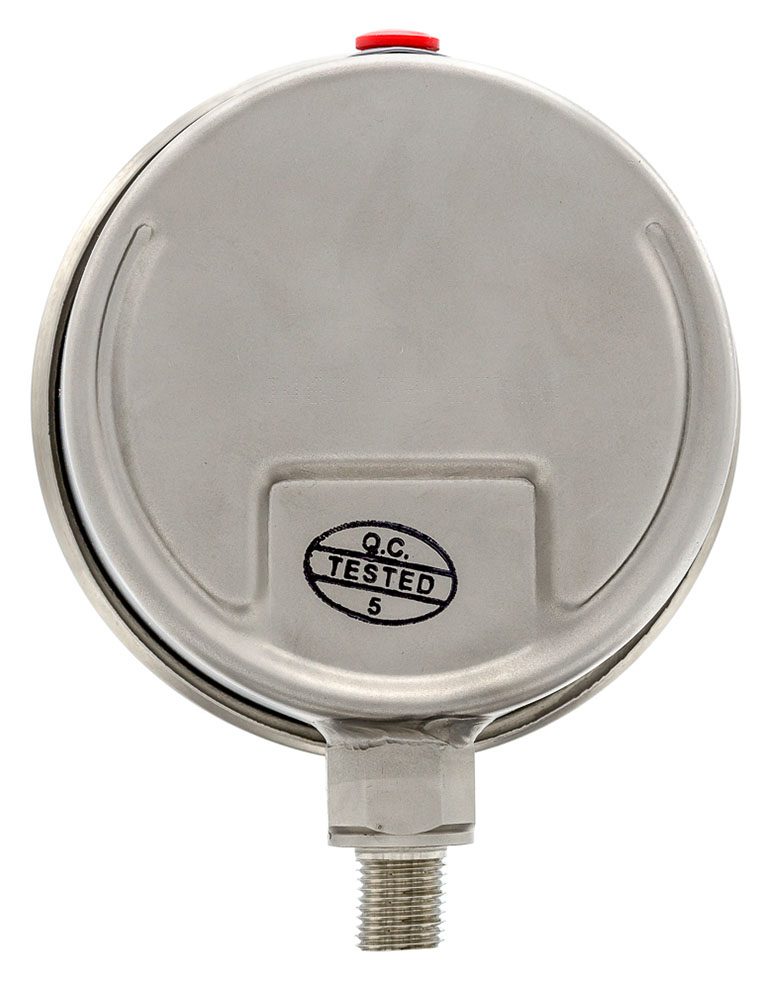

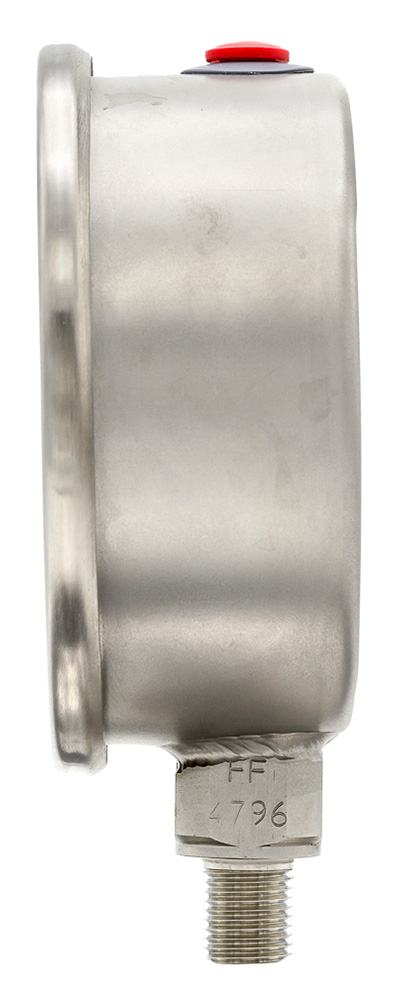

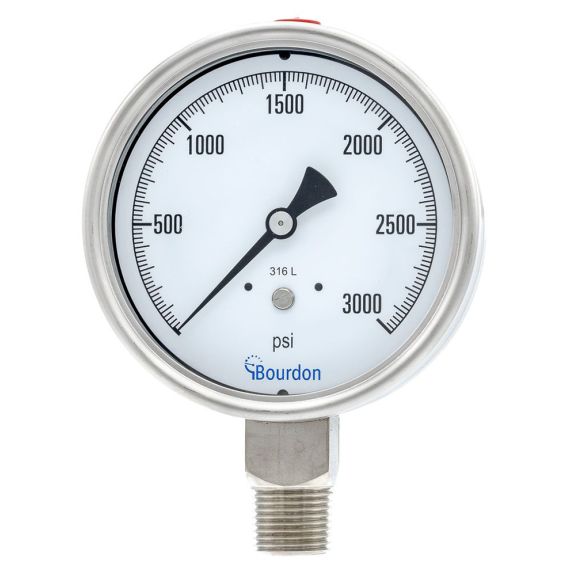

The Bourdon MEX5 Pressure Gauge is an analog, bourdon tube gauge designed for use with corrosive gases and liquids. Pressure ranges are available from vacuum to 20,000psi, including compound and metric ranges. With a nominal size of 3.94in (100mm), the gauge features a stainless steel case, stainless steel or Monel bourdon tube and process connection, and a stainless steel bezel ring.
The Bourdon MEX5 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil. Standard accuracy is ± 1% (Class 1 according to EN 837-1). Multiple process connection options are available, including M20 x 1.5, up to 3/8in NPT, and up to G 3/8in.
Applications
- Laboratory and medical
- Oil and gas
- Food and beverage
- Energy
- Transportation and logistics
- Water and waste water
- Machinery
