Druck DPI 104 Pressure Gauge
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 0.05% full scale (FS) accuracy
- Pressure ranges to 20,000 psi (1400 bar)
- Eleven selectable pressure units
- Large, easy to read display with five digit resolution
- Pressure indication and bar graph for quick visual reference
- Temperature compensated accuracy from 14 to 122°F (-10 to 50°C)
- 0 to 5V analog output
- Pressure switch test
- Minimum/Maximum, tare and alarm functions
- IDOS compatible and RS232 serial interface
- Networking capability (1 to 99 units)
- Stainless steel or Inconel pressure cavity for aggressive media
- Includes NIST traceable certificate of calibration

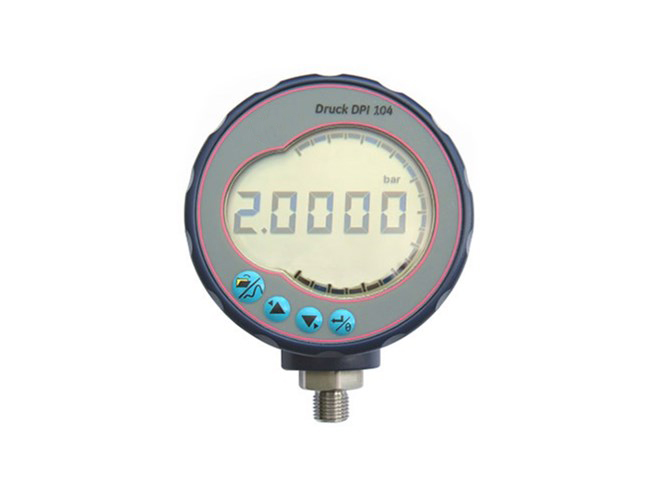

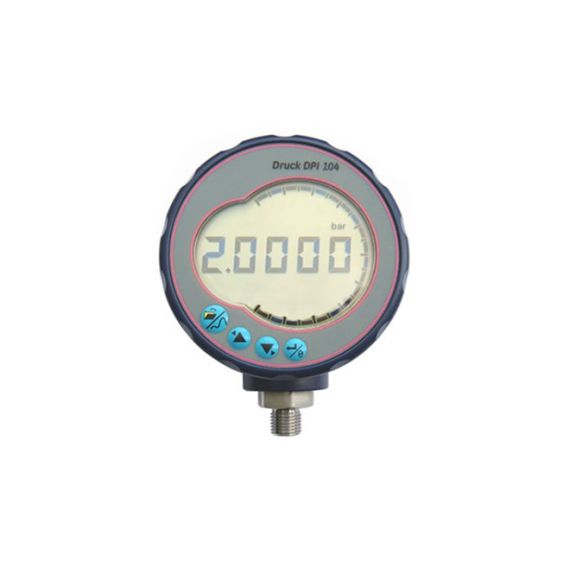

The Druck DPI 104 pressure gauge is a micro-processor controlled digital test gauge that combines precision and functionality in a compact, robust, and simple to use package. The Druck DPI 104 pressure gauge matches advanced silicon sensor technology with several convenient design features resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a stand-alone process indicator or in a kit with the widely proven Druck hand pumps, the Druck DPI 104 pressure gauge provides a reliable and economic solution for a wide range of pressure sensing applications.
Applications of the Druck 104 Pressure Gauge
- Process monitoring and control
- Test and calibration
Universal Pressure Modules (UPM) can be connected to the Druck DPI 104 pressure gauge to enhance the accuracy and extend the pressure range of the unit.
