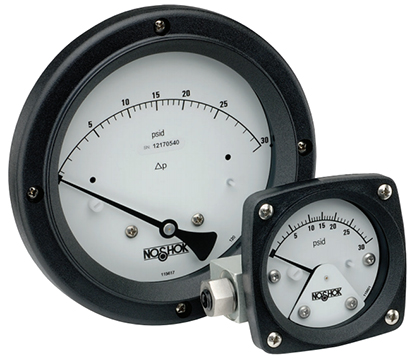

NOSHOK 1000 Series Differential Pressure Gauges
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Ranges from 0 to 5 psid through 0 to 110 psid
- 2-1/2, 4-1/2 & 6 inch dial sizes
- 1/4 inch NPT female back connection
- ±3/2/3% of full scale accuracy on rising pressure
- Engineered plastic case material
The NOSHOK 1000 Series differential pressure gauges are available with a 2-1/2, 4-1/2 or 6 inch dial size and offer pressure ranges from 0 to 5 psid through 0 to 110 psid. Housed in an engineering plastic gauge case, the 1000 Series features clear anodized aluminum and 316 stainless steel wetted parts as well as a maximum working static pressure of 3,000 psig (aluminum) or 6,000 psig (stainless steel).
Designed to handle media temperatures from -40° to 200°F (-40°C to 93°C), the NOSHOK 1000 Series differential pressure gauges work well in a variety of applications including heat exchangers, filter monitoring and flow and level indication. The 1000 Series also offers switch and transmitter options including single or dual switches or a 4 to 20mA transmitter in a NEMA 4X enclosure. These optional switches are SPDT and have an adjustable range of 15 to 95%.
