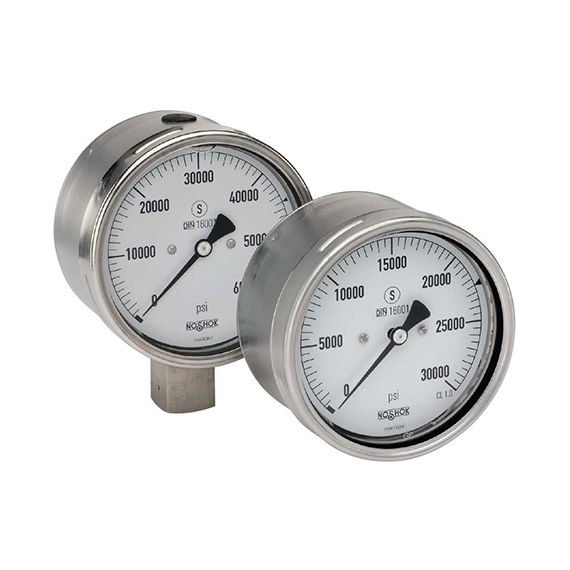

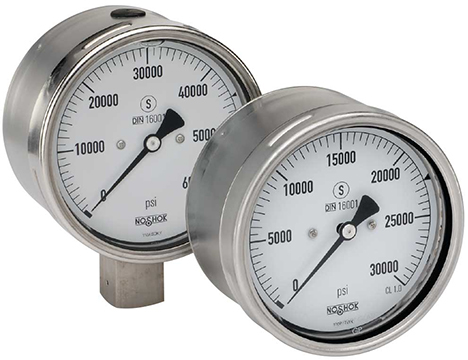

NOSHOK 402 & 502 Extreme High Pressure Gauges
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Ranges from 0 to 30,000 psi through 0 to 85,000 psi
- 4 & 6 inch dial sizes
- Dry or liquid filled
- Stainless steel case, with solid front & blow out back
- In accordance to EN 837, S3 Safety Pattern
- NiFe alloy & 316L stainless steel wetted parts
The NOSHOK 402 and 502 extreme high pressure gauges are corrosion-resistant, solid front design available in pressure ranges from 0 to 30,000 psi up to 0 to 85,000 psi. The solid front design also features a blow out back in accordance with EN 837 S3 Safety Pattern. These NOSHOK extreme high pressure gauges are available with 4 or 6 inch dials and can be dry or liquid filled. Glycerin fill is used standard with silicone as an optional upgrade.
Designed for media temperatures from -40° to 392 °F (-40° to 200 °C), the NOSHOK 402 and 502 extreme high pressure gauges can support a wide variety of applications including pumps and compressors, test equipment and systems and water jet cutting. The dynamic working pressure of the 402 and 502 pressure gauges should be limited to 65% of the dial range, though the static pressure can fall within 75% of the dial range with no sharp fluctuations.
