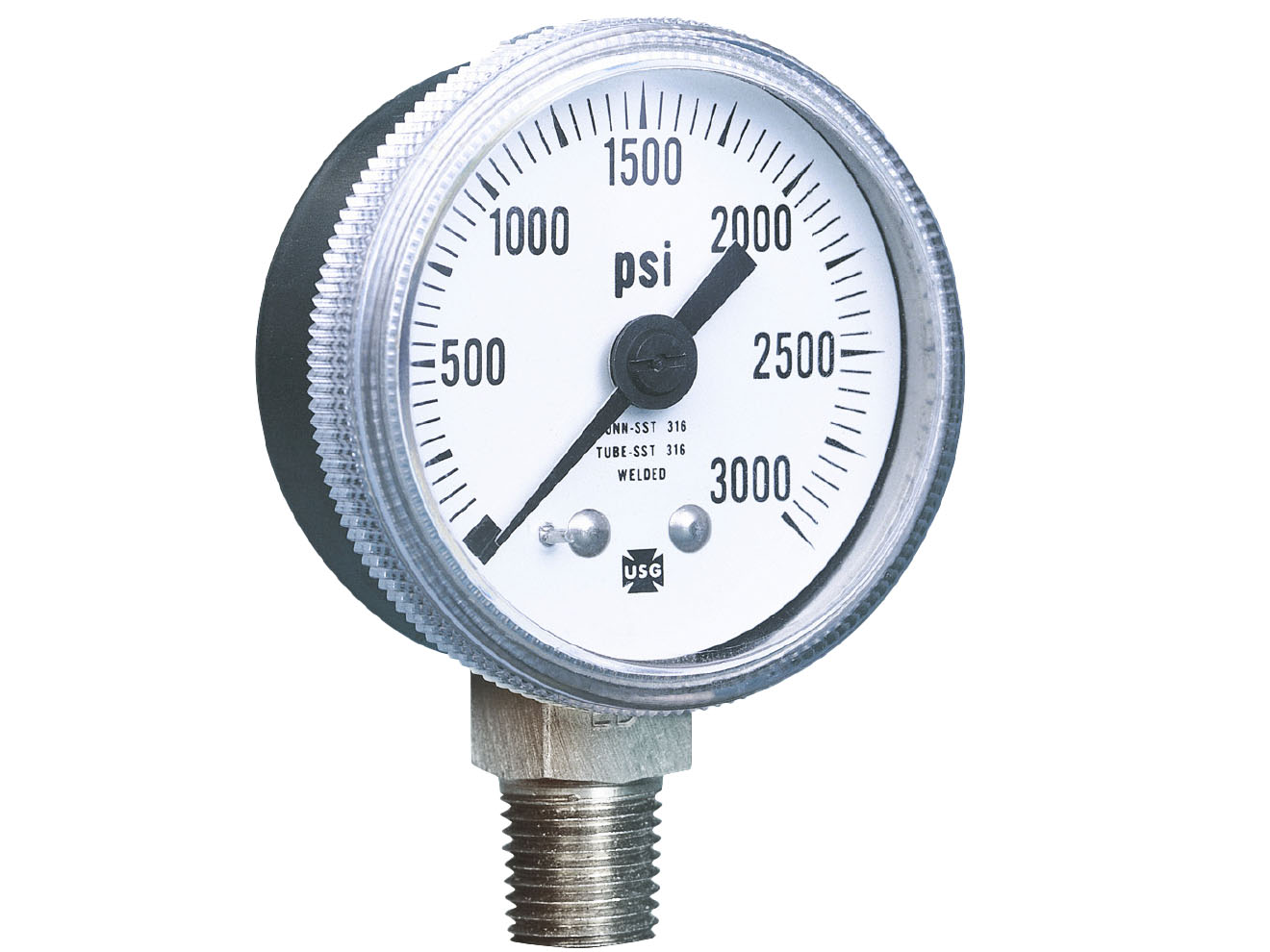

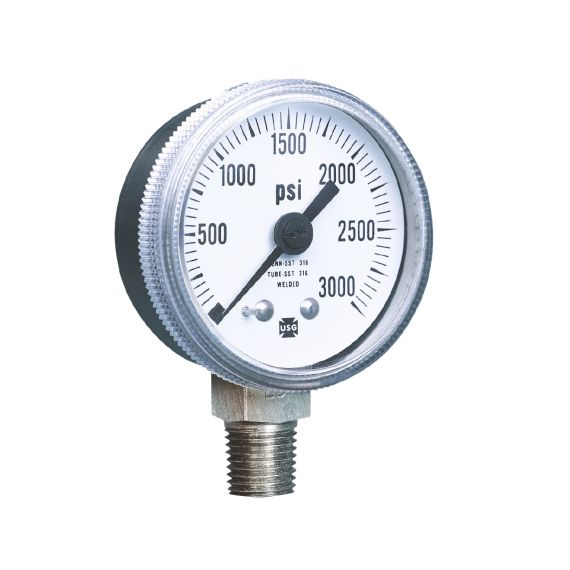

US Gauge Model 1535 Pressure Gauge
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 2" or 2.5" sizes
- Drawn stainless steel polished with pressure relief in back of case
- Ring and window: one piece threaded polycarbonate
- Pointer: aluminum adjustable black finish
- P-1535: 1/4-18 ANPT 316L stainless steel connection
- Range: VAC-0 to 30 psi to 3000 psi
- Accuracy:
- ±1% of span for range to but not including 3000 psi
- ±2% of span for ranges 3000 psi and above
The US Gauge Model 1535 Pressure Gauge features ±1% of span accuracy and utilize 300 series stainless steel case. These heavy duty 2" and 2.5" pressure gauges are specifically designed to withstand the corrosive atmospheres, such as salt air, sour gas, and other industrial gases. These gauges are also used in specialty gauge regulators and gas cabinets, as well as many other applications. The Model 1535 features all internal wetted surfaces of 316L, making these gauges ideally suited for use with corrosive process media.
The Model P1535 is available in pressure ranges from 30" Hg VAC-0 psi to 0-3000 psi. This precision gauge incorporates rugged case construction with rear pressure relief, and a seamless Bourdon tube with welded joints for heavy duty service.
