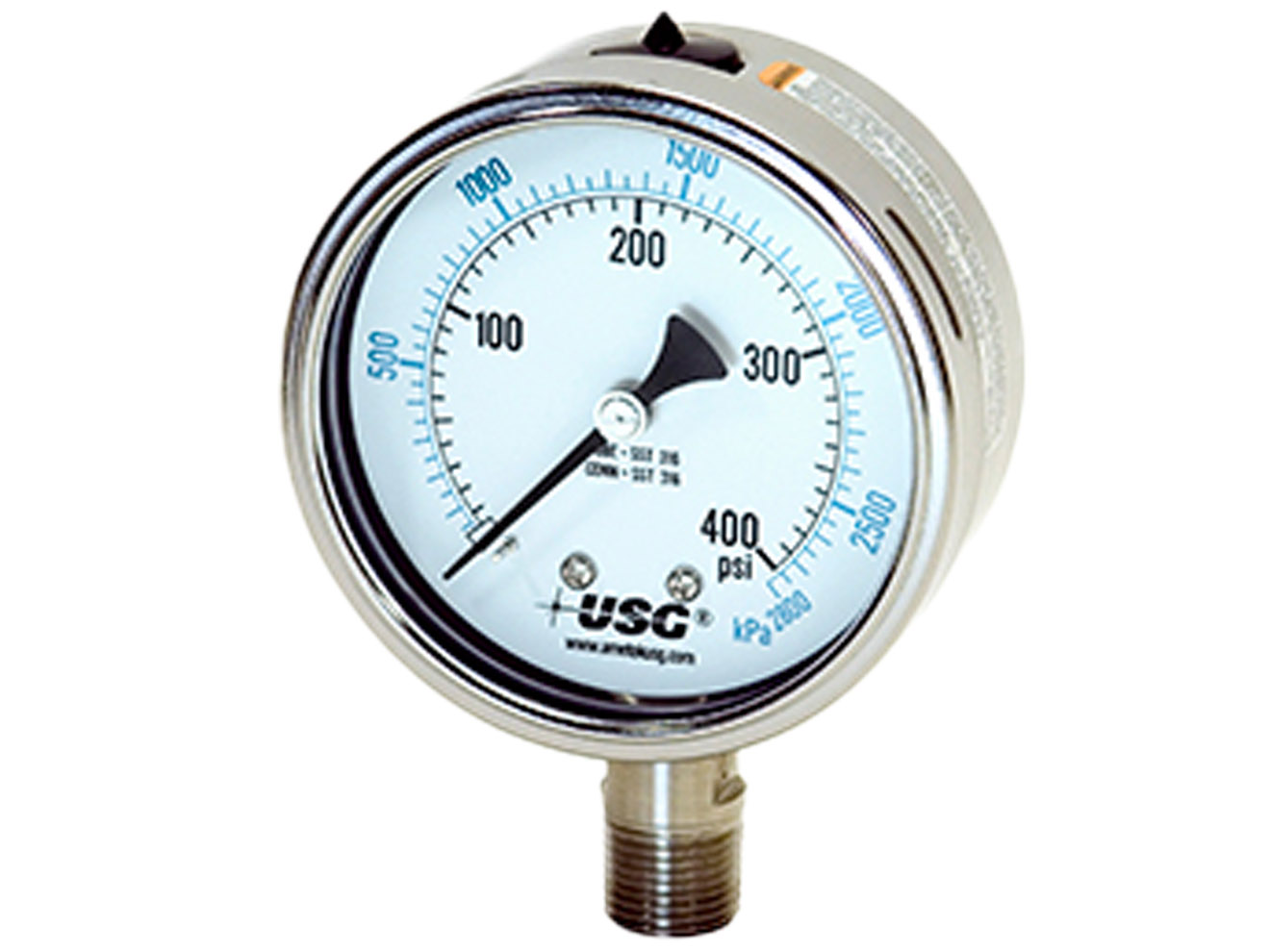

US Gauge Model 1550 and 1553 Stainless Steel Liquid Filled Gauge
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Low cost all stainless steel construction
- 316L SST wetted parts
- 2-1/2 and 4in dial size
- White aluminum with black markings; black psi inner scale and blue kPa outer scale
- Pressure Ranges:
- Vacuum: 30in to 0 HG VAC (counterclockwise rotation with increasing vacuum)
- Compound: 30inHG VAC to 0, 0 to 15 through 0 through 300psi
- Pressure: 0 to 15 psi through 0 to 15,000psi
- Accuracy:
- 2-1/2in: ±3-2-3% full scale
- 4in: ±1% full scale
- NEMA 4X / IP66
The Model 1550 and 1553 stainless steel liquid filled gauge is a low cost stainless steel gauge that has a crimped ring and dual scale psi/kpa dial standard. The pressure gauge is suitable for environments with high vibration, pulsation, pressure spikes and condensation build up. Liquid filling protects the internals of the pressure gauges, and dampens the pointer to improve readability. This gauge is NEMA 4X / IP66 weather proof for durability. Liquid filling also eliminates condensation build up due to temperature fluctuations on the inside window. The 1550/1553 is a liquid filled pressure gauge and is available in 2½in and 4in gauge sizes.
Each gauge has 316L SST socket and 316L SST bourdon tube. The case material is 304 SST with a crimped on window and a liquid fill plug at the top of the case for easy field filling if needed. The 2½in version meets ASME B40.100 Grade B accuracy (±3-2-3%) and the 4in meets Grade 1A accuracy (±1.0%).
All Model 1550/1553 pressure gauge are RoHS compliant to EU directive 2011/65/EU.
