US Gauge Model 1706 Ammonia Pressure Gauge 3-1/2in 30inHG to 0 to 300psi Not Included
034276A
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Pressure Range | Sort by NIST Certification | Sort by Size |
|---|---|---|---|---|---|
$32968
|
In stock
|
034272A/C
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
Contact us for a price
|
In stock
|
034272A
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
$32968
|
In stock
|
034273A/C
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
Contact us for a price
|
In stock
|
034273A
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
$32968
|
In stock
|
034275A/C
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
Contact us for a price
|
In stock
|
034275A
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
$32968
|
In stock
|
034276A/C
|
Pressure Range:
|
NIST Certification:
|
Size:
|
|
Contact us for a price
|
In stock
|
034276A
|
Pressure Range:
|
NIST Certification:
|
Size:
|
Features
- 2-1/2" or 3-1/2in size
- 30" Hg VAC, 0-150 psi; 30" Hg VAC, 0-300 psi range
- ±3-2-3% Accuracy
- Soft soldered, 316 stainless steel bourdon tube
- Threaded, polycarbonate standard window
- Steel dial with white background and black markings; refrigerant temperature scale in red
- Aluminum, adjustable, black finish pointer
- Drawn steel, black corrosion-resistant painted case
- 1/4-18 NPT, LM, nickel plated steel connection

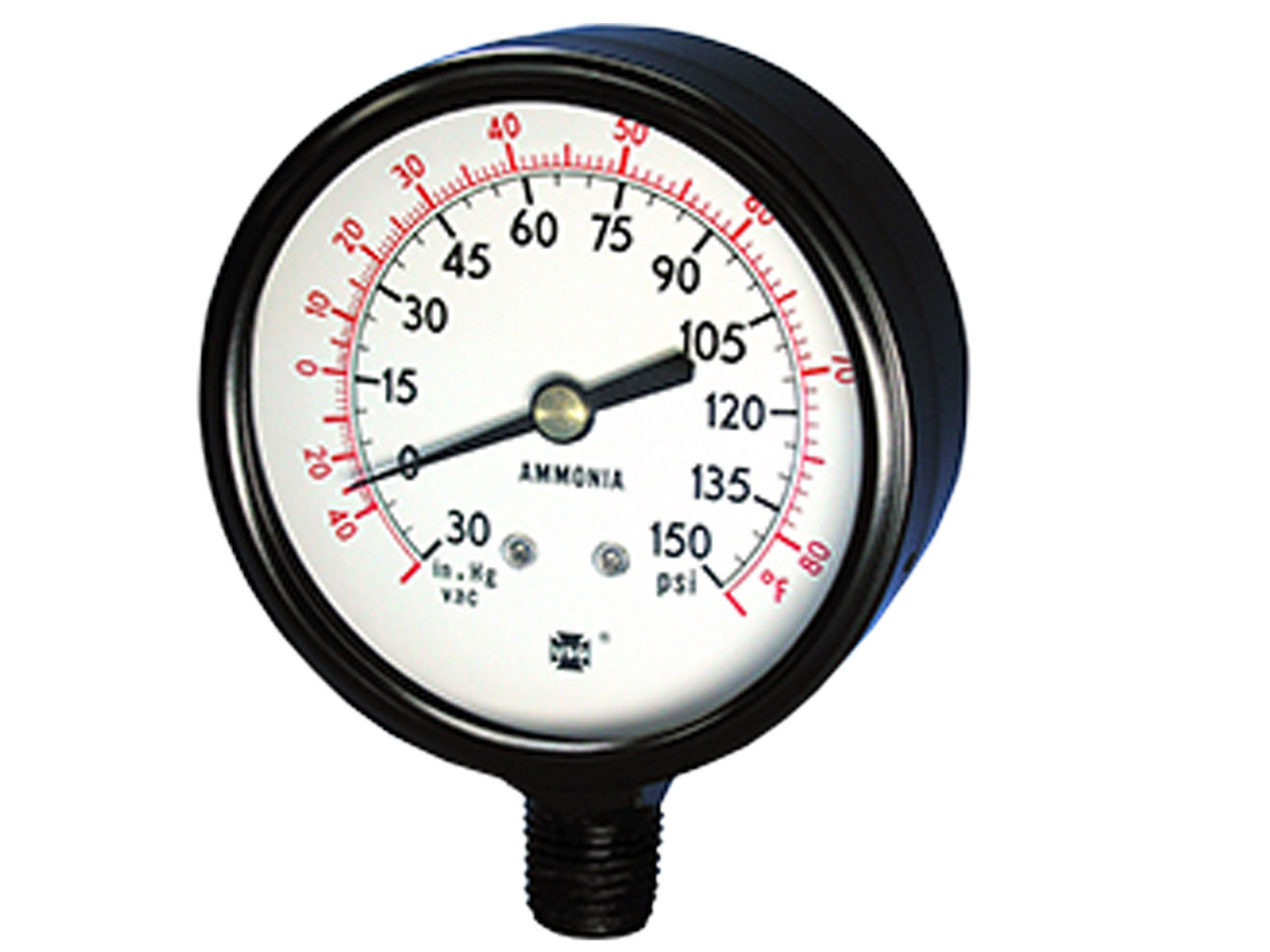

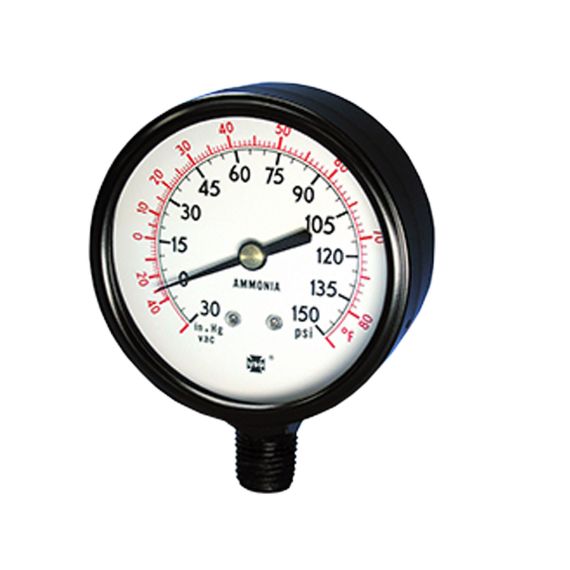

The Model 1706 gauge is usually installed in ammonia refrigeration systems. The 1706 compound gauge can also be used to handle other chemicals not injurious to wetted parts. The silicone dampened movement greatly extends gauge life, particularly on tough services like ammonia compressors. Temperature equivalent scale in red provides easy analysis of refrigeration systems.
