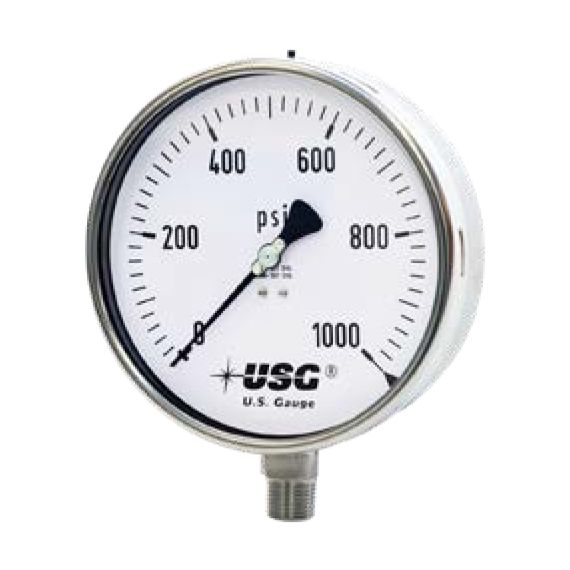

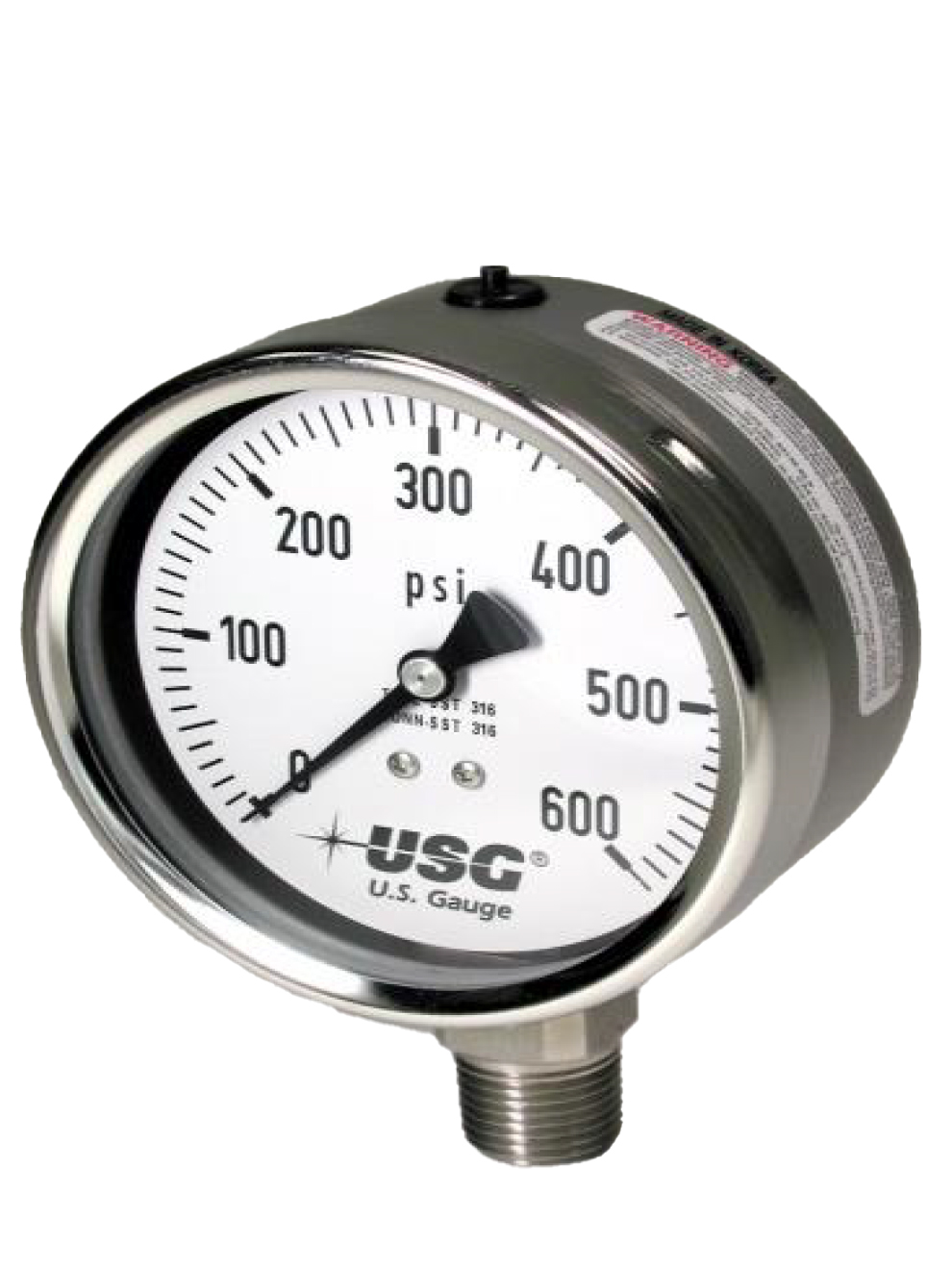

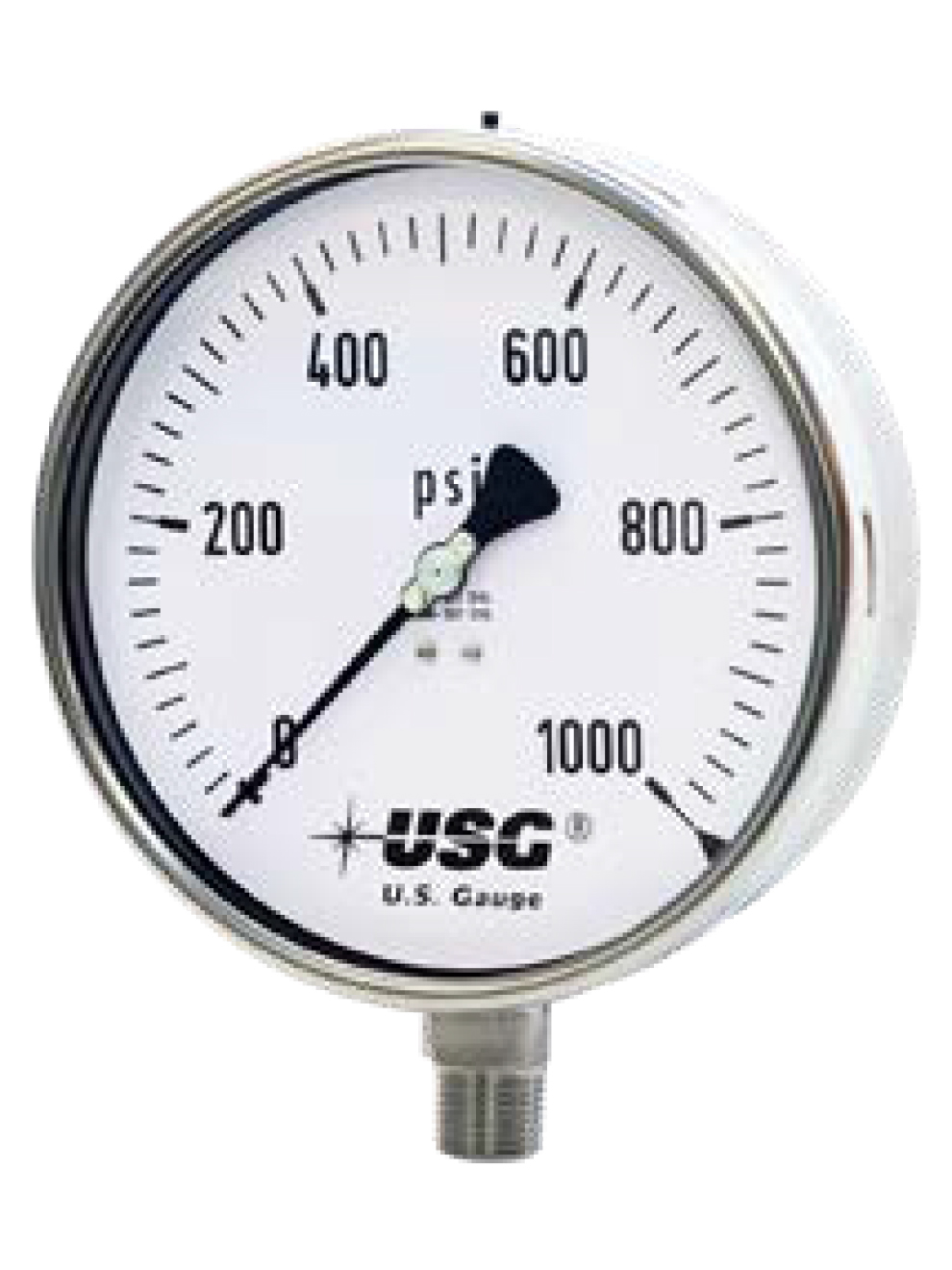

US Gauge Model 656 Liquid Filled Pressure Gauge
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Dial sizes: 2.5in, 4in & 6in
- Mounting style(s):

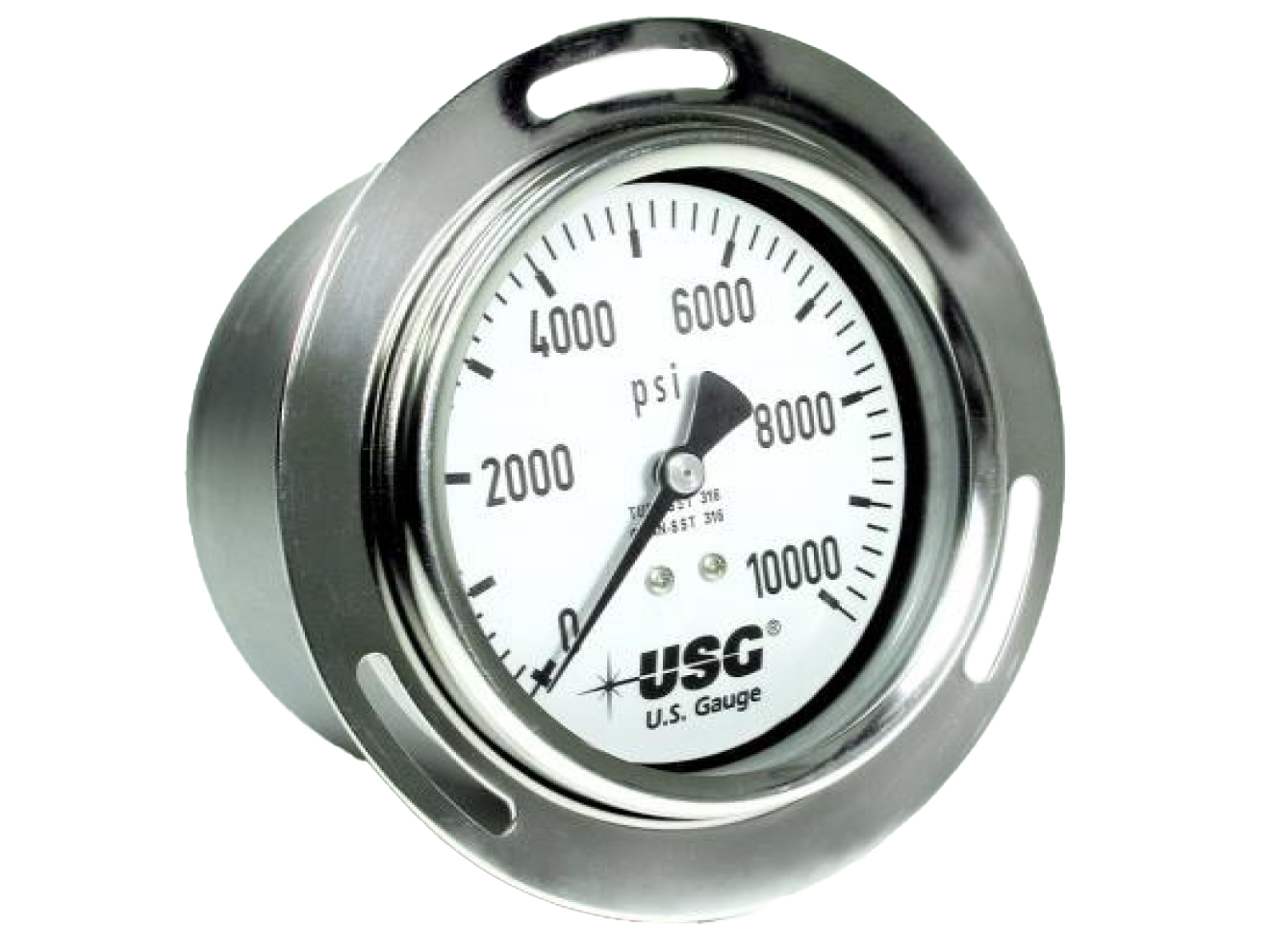

- low mount, center back mount, low back mount with front flange, low back mount with u-clamp
- Process connection(316L SS):
- 2.5in: 1/4in NPT
- 4in: 1/4in & 1/2in NPT
- 6in: 1/2in NPT
- Pressure Ranges(dual scale options available):
- 2.5in: 30inHg vacuum through 0 to 10000psi
- 4in/6in: 30inHg vacuum through 0 to 23000psi
- Accuracy:
- 2.5in: ±1.6% of full scale
- 4in/6in: ±1.0% of full scale
- Materials:
- Bourdon tube/wetted materials: 316L stainless steel
- case/movement: 304 stainless steel
- window:
- 2.5in: polycarbonate (shatter resistant laminated glass available)
- 4in/6in: shatter resistant laminated glass
- Factory fillable with glycerin, mineral oil or silicone
- NEMA 4X/IP67
The US Gauge Model 656 Liquid Filled Pressure Gauge is designed to withstand various environmental factors including intense vibration and corrosive atmospheres. With mount styles and ranges to fit every need, the Model 656 is well suited to a broad range of applications, including but not limited to: chemical, refinement, food, pharmaceutical, hydraulic and fluid power.
Available in 2.5, 4 and 6in dial sizes, the Model 656 features an open front stainless steel case with a pressure relieving design to maximize user safety. The 4 and 6in sizes come standard with a shatter resistant glass window for further protections, whilst the 2.5in features a polycarbonate window, with the glass as a low cost upgrade. The model 656 can further extend its service life amidst harsh processes with factory fill options including glycerin (most common), mineral oil and silicone(for higher temperature use cases). The Model 656 is a highly customizable gauge with ranges from 30inHg vacuum up to 23000psi, with dual scales optional at no additional cost(further ranges available upon request).
