WIKA M93X.D1 Pressure Gauge
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- All-welded design
- -30inHG up to 5000 psi pressure range
- Vacuum, compound and gauge pressures available
- ±1.0% of span accuracy
- 4.5in dial size
- Dry or liquid fill
- Eliminates all potential leak paths
- Tamper-resistant construction

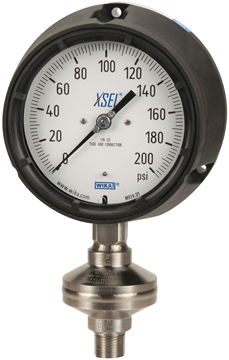

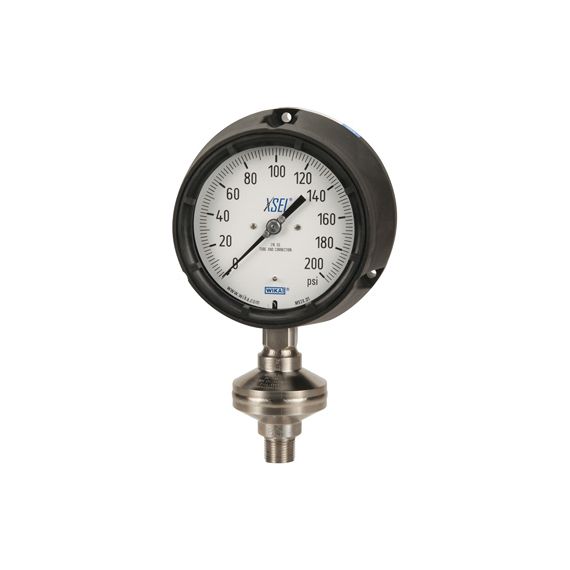

The WIKA Type M93X.D1 Pressure Gauge eliminates all potential leak paths and has a tamper-resistant construction. The all-welded system is ideal for installations where tightly controlled fugitive emissions and safety are a concern. The M93X.D1 is well-suited for applications in the chemical, petrochemical and process industries.
This all-welded gauge assembly is constructed using WIKA gauge model number 23X.34 and diaphragm seal model number L990.34. The diaphragm is recessed within the all-welded seal body.The pressure gauge is back-welded to the seal upper housing to eliminate another potential leak path. The threaded seal fill port has been removed to ensure a tamper resistant design. Additional process wetted materials, process connections, system fill fluids and accessories are available to meet the rigorous demands of most applications.
